Model: LD-420D
Bag Volume: 1000ml
Film Thickness: 0.04-0.12mm
Power Supply: 220V, 50/60Hz, 3KW

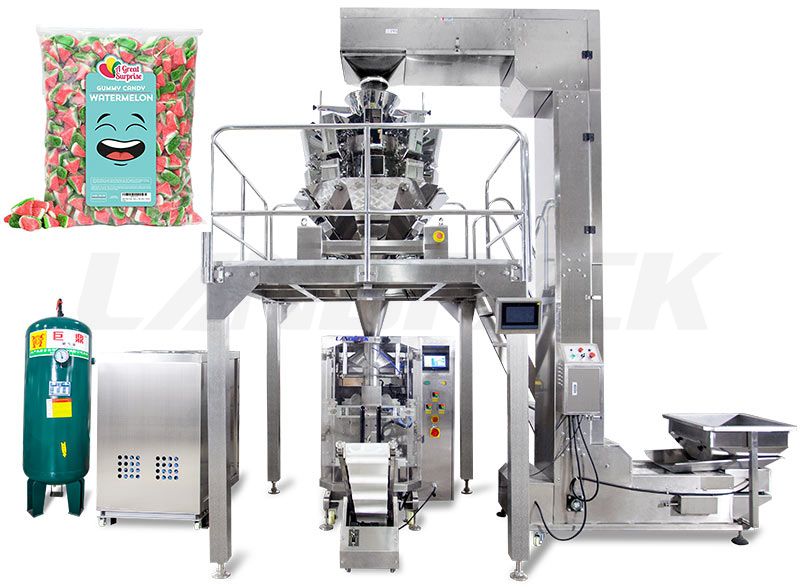

Application: Automatic Candy Pouch Nitrogen-Filled Packing Machine, it is suitable for all kinds of products that need to extend the shelf life and keep fresh, such as potato chips, candy, popcorn, rice, puffed food.
5-50bag/min
Model: LD-420D
Bag Volume: 1000ml
Film Thickness: 0.04-0.12mm
Power Supply: 220V, 50/60Hz, 3KW
Application: Automatic Candy Pouch Nitrogen-Filled Packing Machine, it is suitable for all kinds of products that need to extend the shelf life and keep fresh, such as potato chips, candy, popcorn, rice, puffed food.
5-50bag/min
● Application: Automatic Candy Pouch Nitrogen-Filled Packing Machine, it is suitable for all kinds of products that need to extend the shelf life and keep fresh, such as potato chips, candy, popcorn, rice, puffed food, biscuits, vegetable salad (shreded or sllices vegetables, like iceberg lettuce, cabbage, romain, spring onion and leek ect.)
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● Multi-head combined weigher, improve metering speed and accuracy.
● 7 inch touch screen, easy operation and multiple language for choice.
● Imported PLC system, machine performance is stable and easy for parameters adjusting.
● With a memory function for storage ten sets of parameters. Easy to change packing product.
● Separate PID temperature controller, suitable for various packing materials.
● Multi-union roll film pulling system make film running more smooth.
● Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
● Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
● Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.
● Low loss, labor saving, easy for operation and maintenance.
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
| Combined Parts | LD series main frame, multi-heads weigher, Nitrogen Generator, Z type bucket elevator, Vibration feeder, Supporting platform, Product conveyor. | |||||
● Vacuum film feeding device
● angle fold device
● retainer devices hole-punching device
● link bag device.
After receiving your inquiry, We will send you the quotation as soon as possible.
