Model: LDS-420A-3/ 520A-3
Application: Suitable for accurate weighing packing of large yield various particles products . It is apply to pack bulk grain, slice, short bar material products such as potato chips, puffy food, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.
Max.180 bag/min
Model: LDS-420A-3/ 520A-3
Application: Suitable for accurate weighing packing of large yield various particles products . It is apply to pack bulk grain, slice, short bar material products such as potato chips, puffy food, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.
Max.180 bag/min

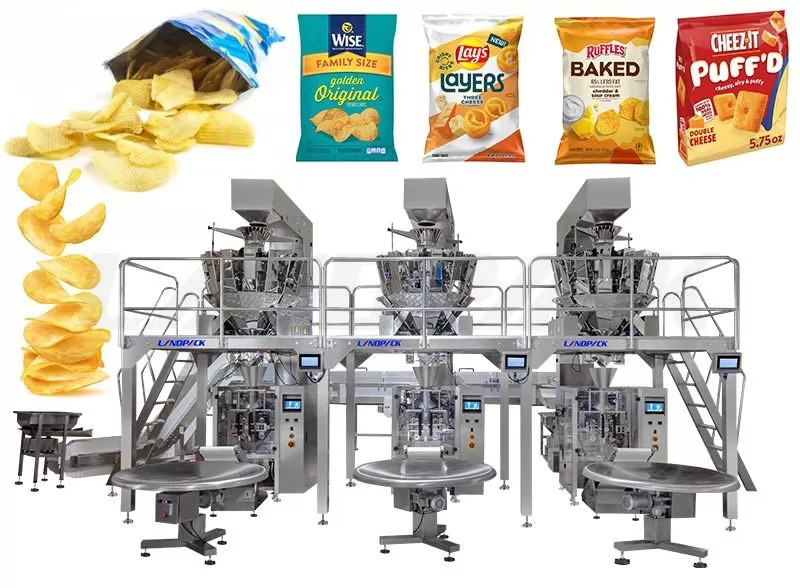

● Application: Automatic Potato Chips/ Banana Chips Weighing And Packing System (LDS-420A-3/ 520A-3), It suitable for accurate weighing packing of large yield various particles products . It is apply to pack bulk grain, slice, short bar material products such as potato chips, puffy food, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● This packaging solution is suitable for large production packing.
● Economical,save cost,small footprint.
● Horizontal rewind conveying the material, with large transportion.
● Feeding, Measuring, Bagging, Date printing, Charging(Exhausting) realising fully automation.
● Imported PLC control system,colorful touch screen,easy operation, intuitionistic efficient.
● Standard positioning with imported servo film transporting system and mark sensor.
● With auto warning protection function to minimize loss.
● High precision, high efficiency without crash the materials.
| Model | LD-420A（single host） | LD-520A（single host） | LD-720A（single host） |
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Packing Speed | 5-60bag/min | 5-60bag/min | 5-55bag/min |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
| Machine Size | (L)1217*(W)1015*(H)1343mm | (L)1488*(W)1080*(H)1490mm | (L)1780*(W)1350*(H)2050mm |
| Machine Weight | About 650kg | About 680kg | About 750kg |
| Option Device | Two synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device. | ||
● Two synchronous belt device
● air filling device
● angle fold device
● automatic rectifying device
● hole-punching device
● link bag device
After receiving your inquiry, We will send you the quotation as soon as possible.
