Model: LD-320SF
Film width: 120mm-320mm
Film thickness: 0.05-0.12mm
Bag type: 3-side-seal, 4 edge-sealing bag, standard bag, etc.
20-100bags/min
Model: LD-320SF
Film width: 120mm-320mm
Film thickness: 0.05-0.12mm
Bag type: 3-side-seal, 4 edge-sealing bag, standard bag, etc.
20-100bags/min

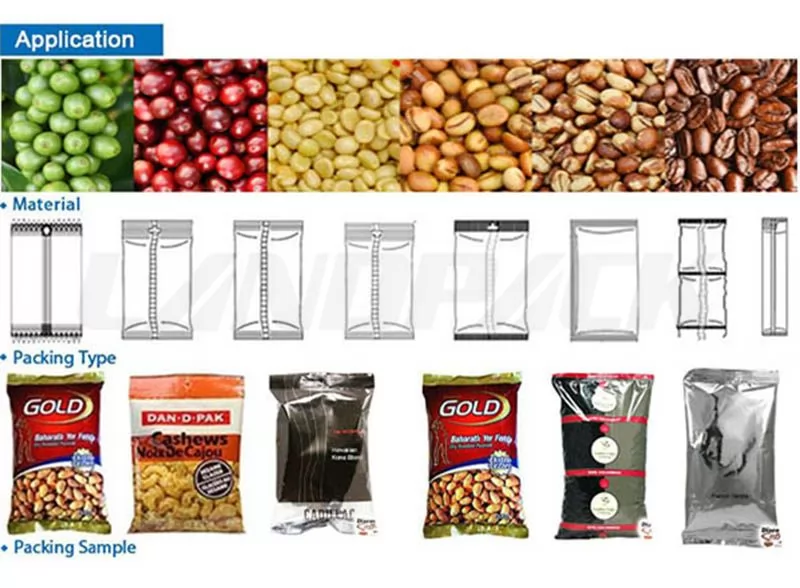

Apllication:

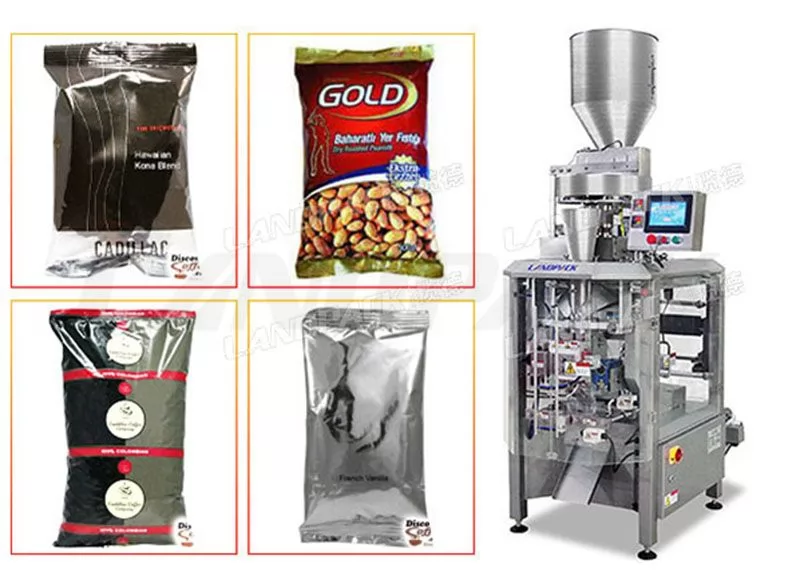

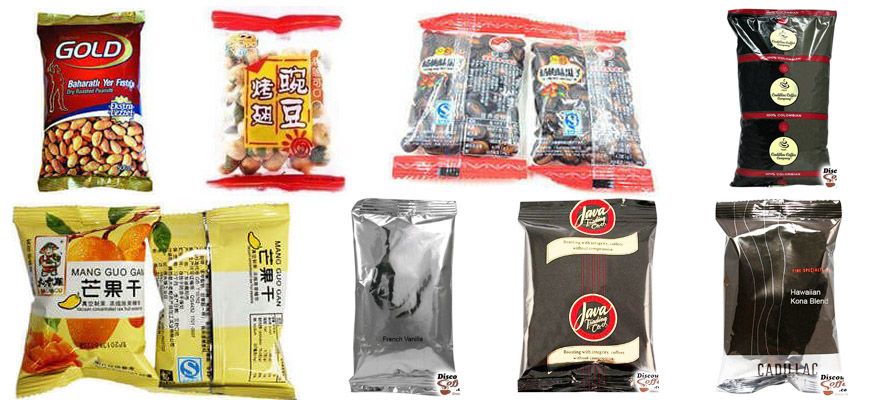

● High speed granule packaging machine with measuring cups equipment (LD-320SF), Ii is suitable for packing for all kinds of grain material, sheet material, strip material and abnormity material which such as coffee beans, candy, melon seeds, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, fibert, corn.
Kindly Reminder:
● We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● The whole machine adopts 3 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;
● The whole machine adopts 3mm&5mm thick stainless steel sheet metal processing and assembly, running smoothly; and the core components are specially optimized design, and the packaging speed is fast;
● The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling and neat and beautiful packaging bags;
● It can be matched with combination weigher, screw, measuring cup, drag bucket, liquid pump to achieve accurate and efficient measurement; (the above functions have been standard in the packaging machine program)
● The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable and durable performance;
● The design of the whole machine complies with GMP standards and has passed CE certification.
Model | LD-320SF |
Capacity | 20-100 bag/min |
Bag size | L:50—170mm, W:50—150mm |
Film width | 120mm—320mm |
Film thickness | 0.05—0.12mm |

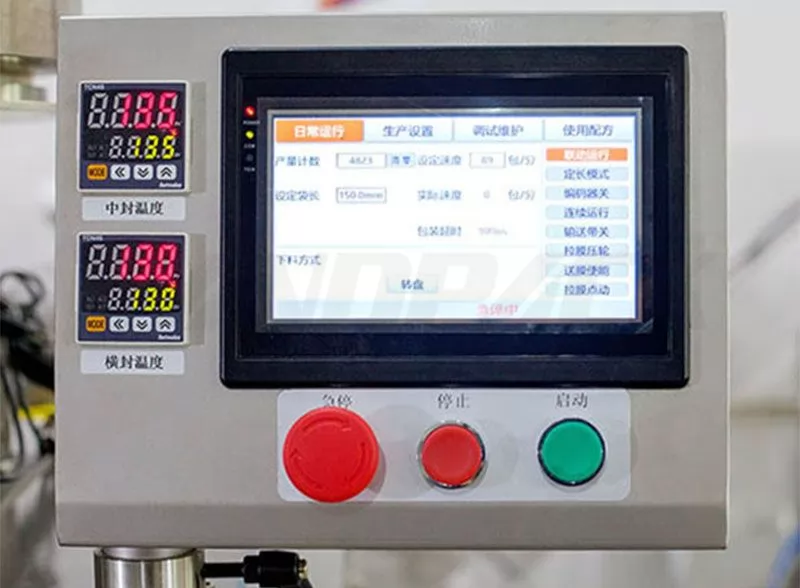

Control system | PLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen |
Power supply | 1N+PE/50HZ/AC220V 4KW |
Airconsumption | 0.6—0.8Mpa, 0.3—0.5㎥/h |
Dimension | L1350*W900*H1400mm |
Equipment Material | Main body 3mm thickness 304 stainless steel frame |
Weight | 350kg |
Description of Main Packaging Process | Pulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output. |
●Pulling film
●Coding
●Bag making

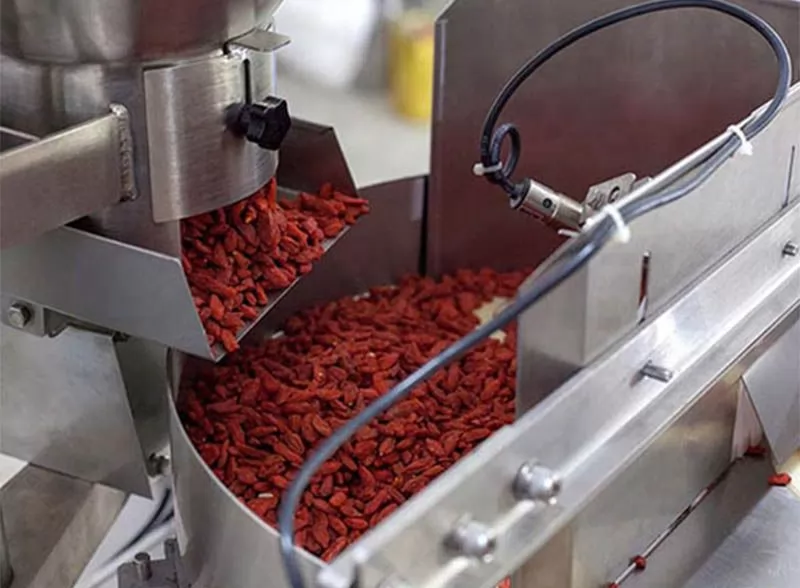

●Measurement
●Filling(inflating)

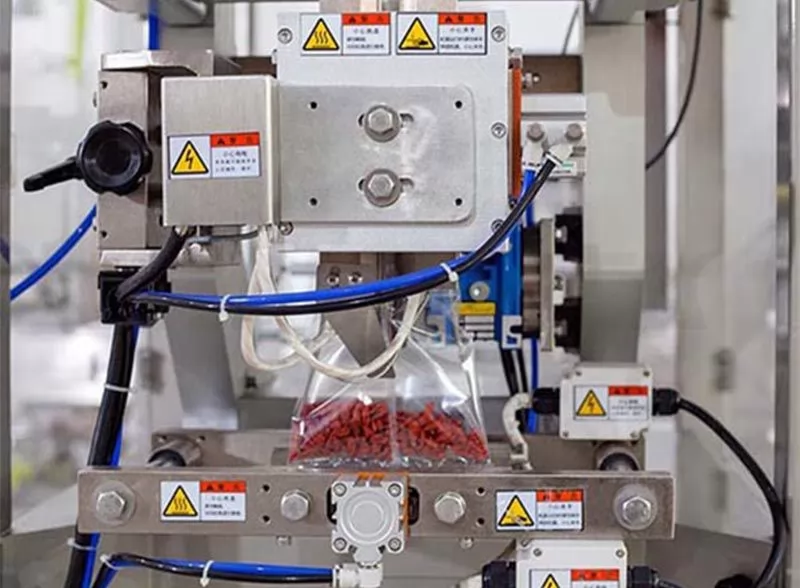

●Sealing(punching)
●Cutting
●Packaging finished product output
After receiving your inquiry, We will send you the quotation as soon as possible.
