Model: LDB-300D

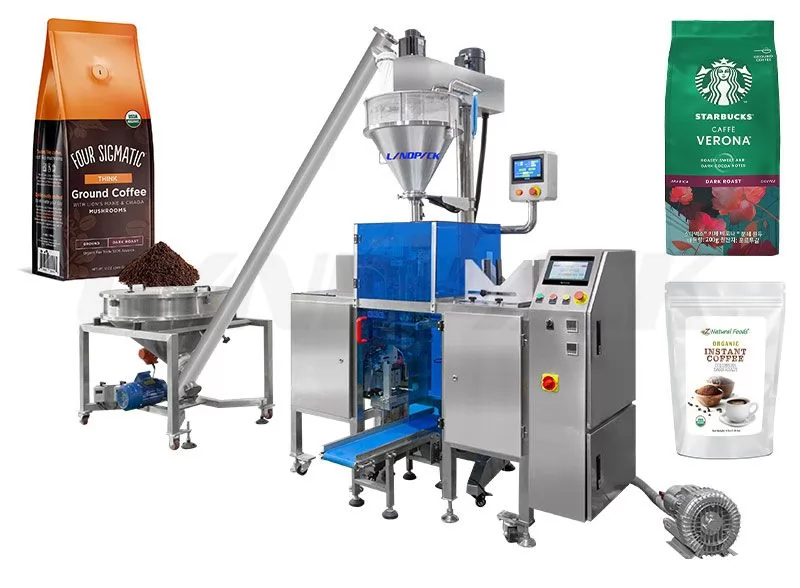

Application: Landpack single station preformed pouch packing machine is applicable for dosing powder, granule or liquid into a premade pouch and sealing.
0~15bags/min
Model: LDB-300D
Application: Landpack single station preformed pouch packing machine is applicable for dosing powder, granule or liquid into a premade pouch and sealing.
0~15bags/min
● Application: It suitable for packaging of materials requiring high accuracy of measurement or careful handling,such as coffee powder, sugar powder, milk powder, wheat flour, detergent powder, coconut powder,spice powder etc.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● Heat sealable premade flat pouch dosing and sealing
● PLC & HMI Control , Easy for parameter setting and troubleshooting
● Different pouch size adaption, simple adjustment without tools
● Intelligent temperature controlling configuration, ensure the artistic and neat sealing.
● Pouch saving design, no completely opened pouch, no filling and sealing.
● Compatible Programs of powder, granule or liquid dosing, plug and play, easy for different products switching
● Machine stopping interlock with door opening.
| Machine Type | LDB-300 | LDB-430 |
| Bag Material/ Bag Type | Multilayer Composite Premade Bag | |
| （e.g.: PET/PE） | ||
| Upgradable Bag Type | 3-sides sealing bag, Doypack, Gusset Bag, Zipper Bag | 3-sides sealing bag, , Doypack, Gusset Bag, Zipper Bag |
| （Need additional purchase of functional device） | （Need additional purchase of functional device） | |
| Size Range | 80mm≤W≤300mm | 80mm≤W≤300mm |
| 100mm≤L≤300mm | 100mm≤L≤430mm | |
| Speed | 0~15bags/min | 0~15bags/min |
| Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | |
| Sealing Width | 10mm（5--20mm can be customized） | |
| Voltage | 220V, Single-phase, | 220V, Single-phase, |
| 50/60HZ, 1.2KW | 50/60HZ, 1.2KW | |
| Air Pressure | 0.65Mpa | |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| （Standard machine, no additional function） | （Standard machine, no additional function） | |
| Body Dimension | 1770*600*1230mm | 1770*600*1360mm |
| Packing Dimension | 1860*710*1550mm | 1860*710*1650mm |
| Export non-fumigation wooden case | Export non-fumigation wooden case | |
● Pouch zipper opening function
● Gusset pouch opening function
● Gas flush function to keep the products fresh and avoid them broken
● Air/Nitrogen Inflating, Air deflating function
● Vacuum function to keep the products fresh and reduce the package space
● Bag tapper vibrating compacting function help products drop to the bag bottom part and enhance packaging density
● Grip seal to avoid powders coming out during filling
● Dedusting device to enable clean packaging environment and ensure quality of sealing
● Different types of code printing function, such as hot stamp ribbon printer, inkjet printer, thermal transfer printer and so on.
After receiving your inquiry, We will send you the quotation as soon as possible.
