Model: LD-620
Film roll diameter: Max.600mm
Making-bag volume: 3000ml
Application: Suitable for packaging of various sticky products and frozen products, such as chicken nuggets, meat, quick-frozen dumplings, frozen food, various seafood, etc.
5-50bag/min
Model: LD-620
Film roll diameter: Max.600mm
Making-bag volume: 3000ml
Application: Suitable for packaging of various sticky products and frozen products, such as chicken nuggets, meat, quick-frozen dumplings, frozen food, various seafood, etc.
5-50bag/min
● Application: Suitable for packaging of various sticky products and frozen products, such as chicken nuggets, meat, quick-frozen dumplings, frozen food, various seafood, etc.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● It completes bagging, filling, sealing, date printing, punching, counting automatically, saving labor and time.
● Computer control and English-Chinese touch screen for easy operation without stopping the unit.
● Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.

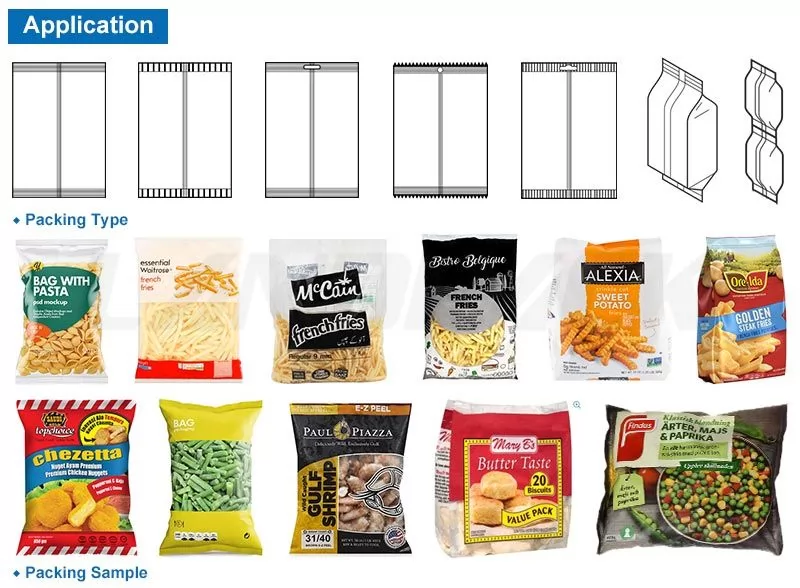

● Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
● Full automation from bag making, measuring, filling, sealing, counting and date printing.
● Multi-heads scale filling system for filling accuracy and good application to various kinds of products.
● The secondary feeding system perfectly solves the problem of insufficient height of the customer's plant
| Model | LD-420 | LD-520 | LD-720 |
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Packing Speed | 5-60bag/min | 5-60bag/min | 5-55bag/min |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
| Machine Size | (L)1217*(W)1015*(H)1343mm | (L)1488*(W)1080*(H)1490mm | (L)1780*(W)1350*(H)2050mm |
| Machine Weight | About 650kg | About 680kg | About 750kg |
| Option Device | Two synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device. | ||
● Vacuum film feeding device
● angle fold device
● retainer devices hole-punching device
● link bag device.
After receiving your inquiry, We will send you the quotation as soon as possible.
