Model: LD-900A
Measuring Range: 10L
Film Roll Diameter: Max.600mm
Application: It is suitable for weighing packaging of 5-15 kg granular products, such as candy, frozen food, dog food, nuts, dry fruit, cat litter, cat food, fish food and other granular pet food packaging.
5-20bag/min
Model: LD-900A
Measuring Range: 10L
Film Roll Diameter: Max.600mm
Application: It is suitable for weighing packaging of 5-15 kg granular products, such as candy, frozen food, dog food, nuts, dry fruit, cat litter, cat food, fish food and other granular pet food packaging.
5-20bag/min

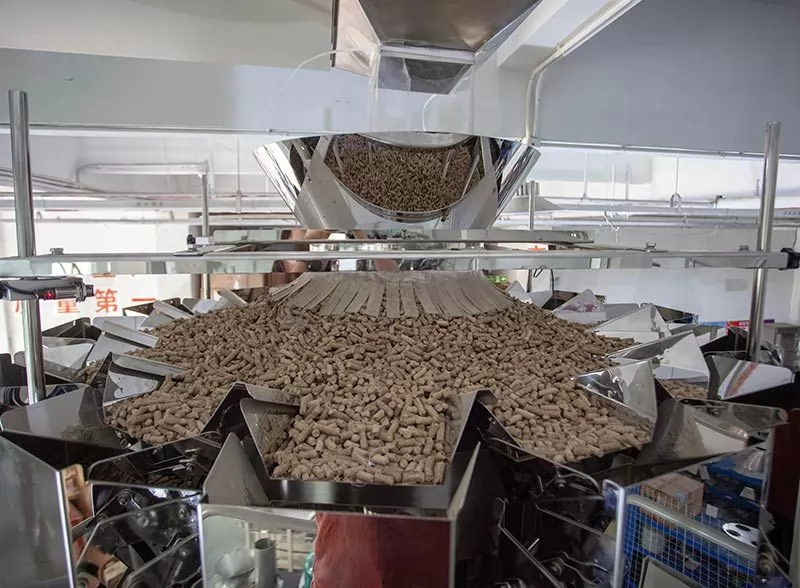

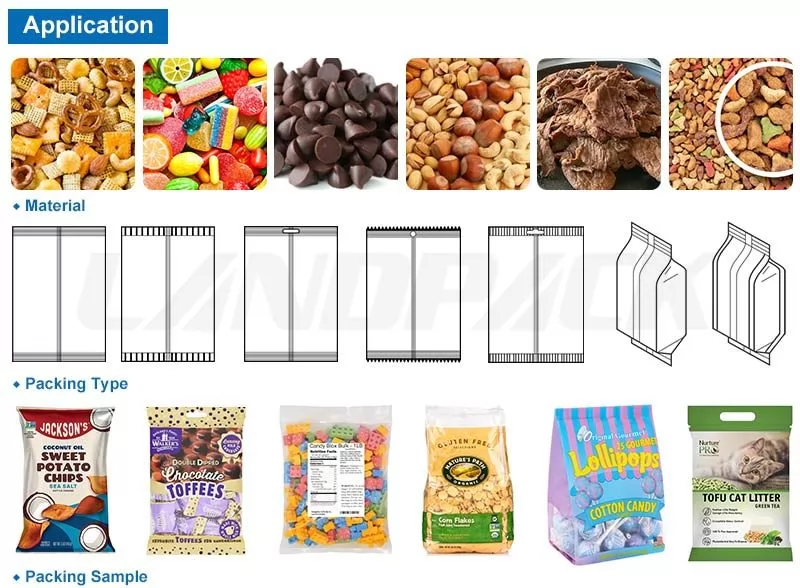

● Application: Multihead Weigher VFFS Packaging Machines is suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as candy, sunflower seeds, peanut, nuts, beans, potato chips, popcorn, almond, dry fruit, vegetable salad (shreded or sllices vegetables, like iceberg lettuce, cabbage, romain, spring onion and leek ect.), frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, dilatant foodstuff, hardware and plastic can be weighed by the ration.
● Kindly Reminde: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● New design with perfect fashion,more reasonable structure, more advanced technology.
● Chinese or English display（Language can be set according to customer requirements).
● Imported PLC control system, colorful touch screen, can clearly shows working state and operation indicator,easy to operate,intuitionistic and efficient.
● Accurate positioning with imported servo film transporting system and color mark sensor, superexcellent capability for complete machine, perfect packaging.
● With auto warning protection function to minimize loss.
● With double transporting devices, gusset devices and retainer devices,function more perfect.
● Various kinds of bag, it could provide the hang hole bag, link bag,etc.
● Automatic correct function, save time, labor, and film, the operation more intelligent.
● Adopt gas-pressure shaft clamping film structure Film setting be more easy and quick.
| Model | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 1-25L | 1-25L | 1.5L-45L |
● Double-servo devices
● vacuum film feeding hole-punching device
● link bag device.
