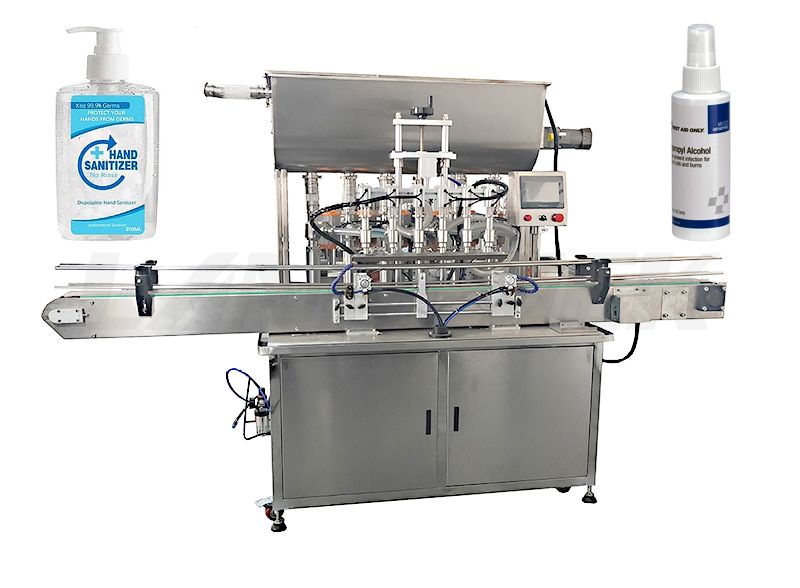

Model: LD-LFM01
Accuracy: ±1%
Filling type: Piston type
Quantity of filing heads: 4-12(customized)
20-96 bottles/min
250ML-2500ML
Model: LD-LFM01
Accuracy: ±1%
Filling type: Piston type
Quantity of filing heads: 4-12(customized)
20-96 bottles/min
250ML-2500ML
● Suitable for the filling of various liquids, pastes and sauces, such as alcohol, disinfectant, disposable hand sanitizer, honey, chili sauce, tomato sauce, pearl milk tea, orange juice, etc., with strong versatility.
Bag Style:
Bottle Packing
Bottle Packing
Bottle Packing
Bottle Packing
Bottle Packing
Bottle Packing
Bottle Packing
Bottle Packing
Bottle Packing
Bottle Packing
Bottle Packing
Bottle Packing

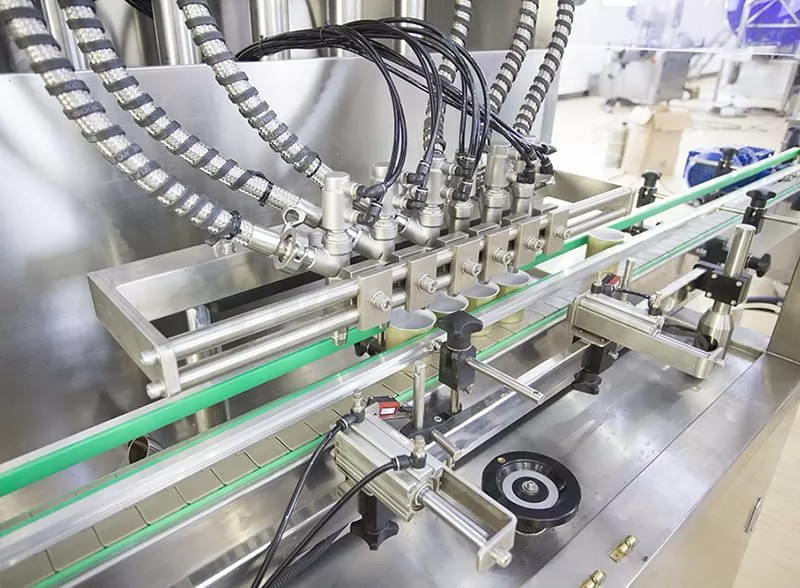

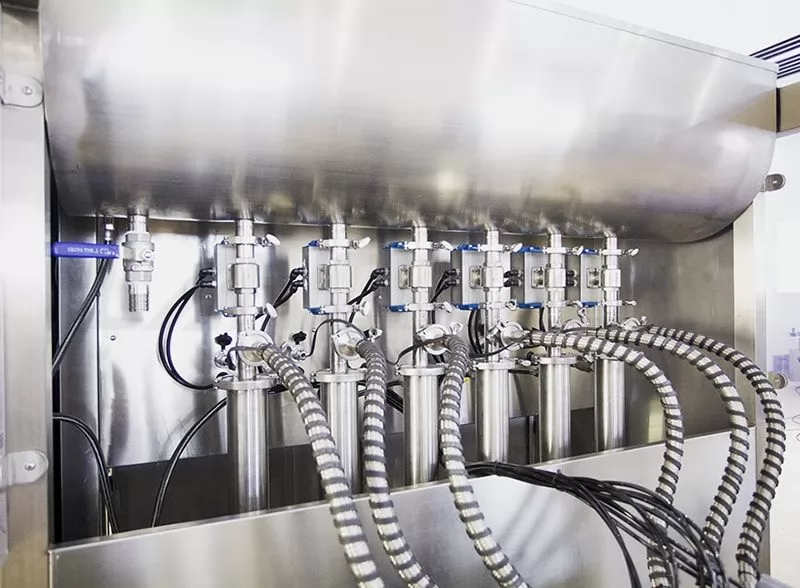

● Piston filling machine, self-priming filling, the material is driven by a single cylinder to drive a single piston to extract the material into the metering cylinder, and then the piston is pneumatically pushed into the container through the material tube. High installation accuracy, easy to use and flexible;
● Equipped with no bottle and no filling function, the liquid level automatically controls feeding, effectively reducing equipment failure;

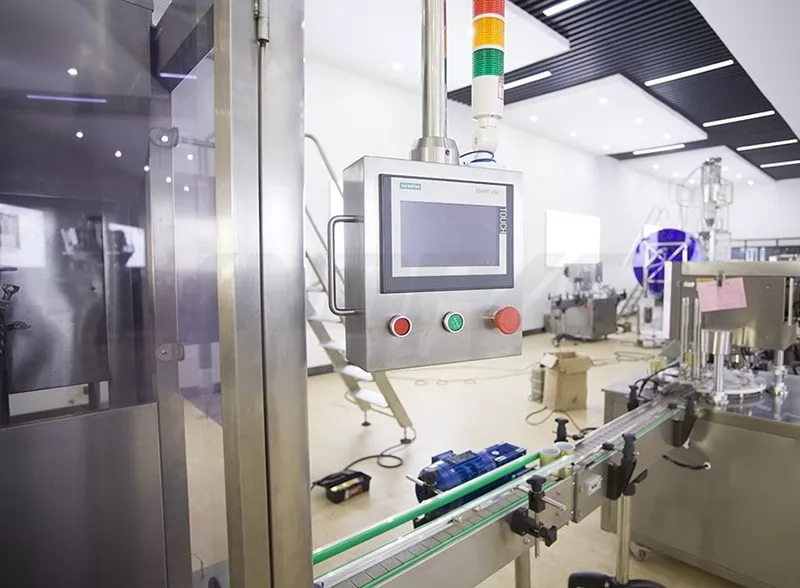

● Program control adopts PLC + touch screen manual operation interface to realize intelligent control
● To adjust the filling volume, each piston cylinder must be adjusted one by one;
● The filling nozzle is made of stainless steel 304, which is corrosion-resistant and meets GMP production requirements;
● The material of the feeding hose is PVC, the temperature range: -10 ℃ ~ + 90 ℃;
● Conveyor belt material is nylon POM material, good wear resistance.
● Model: LD-LFM01
● Sealing speed: 20-96 bottles/min(customized)
● Accuracy: ±1%
● Filling type: Piston type
● Power: 3KW 220V/380V
● Control: Simen PLC+Touch screen
● Quantity of filing heads: 4/6/8/10/12(customized)
● Filling range: 250ML-2500ML
● Random consumables list:
5 hose clamps;
5 sealing rings;
1 raw material belt.
● Random tool list:
One manual;
2. One photoelectric screwdriver;
3. About 5 pieces of conveyor belt chain;
4. One standard 6-angle spoon.
● Optional spare parts
Motor;
Cylinder;
Photoelectric sensor.
After receiving your inquiry, We will send you the quotation as soon as possible.
