Model: LDSP-160L
Application: Automatic Luqid Premade Pouch Doypack Packing Machine, it is suitable for packing liquid standing bags, pre-made bags, zipper bags packaging, such as alcohol, juice, cream, jam, laundry detergent, hand soap, sauces, honey, milk, etc.
10-50 bags/min
Model: LDSP-160L
Application: Automatic Luqid Premade Pouch Doypack Packing Machine, it is suitable for packing liquid standing bags, pre-made bags, zipper bags packaging, such as alcohol, juice, cream, jam, laundry detergent, hand soap, sauces, honey, milk, etc.
10-50 bags/min
● Automatic Luqid Premade Pouch Doypack Packing Machine, it is suitable for packing liquid standing bags, pre-made bags, zipper bags packaging, such as alcohol, juice, cream, jam, laundry detergent, hand soap, sauces, honey, milk, etc.
● Sutable Pouch: Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
● 1. Horizontal bag feeding device, bags can be put in a large number.

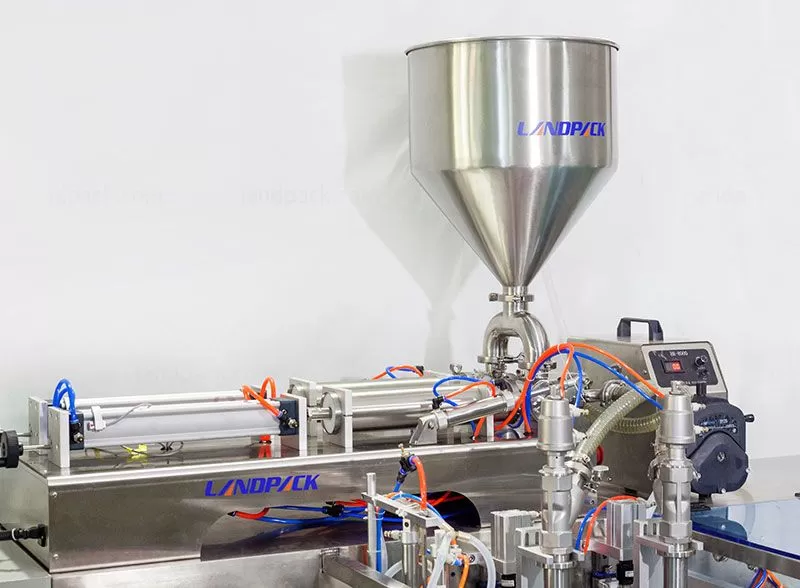

● 2. Double piston metering pump, wide metering range.
● 3. Double feeding nozzle to improve the packaging speed.
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||
1.Explosion-proof elctrical box.
2.Horizontal bag giving device.
3.Date printer.
4.Bag openner.
5.Dual filling nozzle.
6.Double sealing device.
7.Outlet.
After receiving your inquiry, We will send you the quotation as soon as possible.
