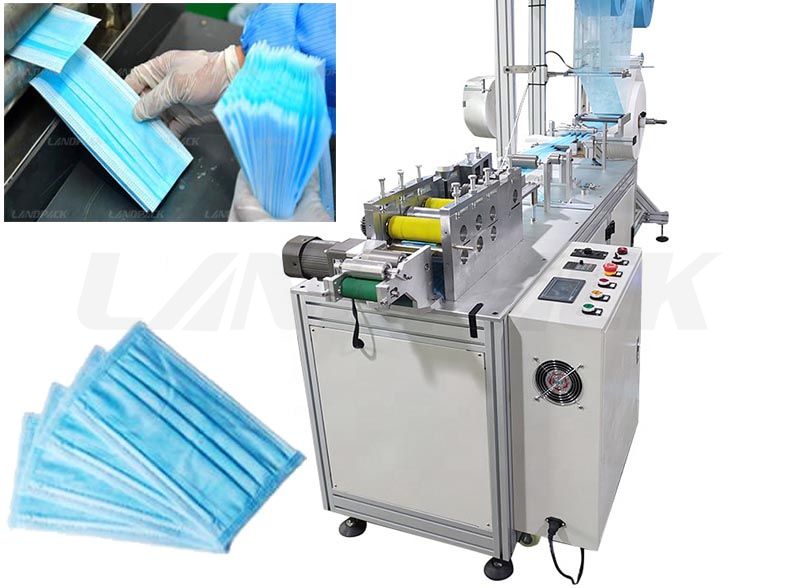

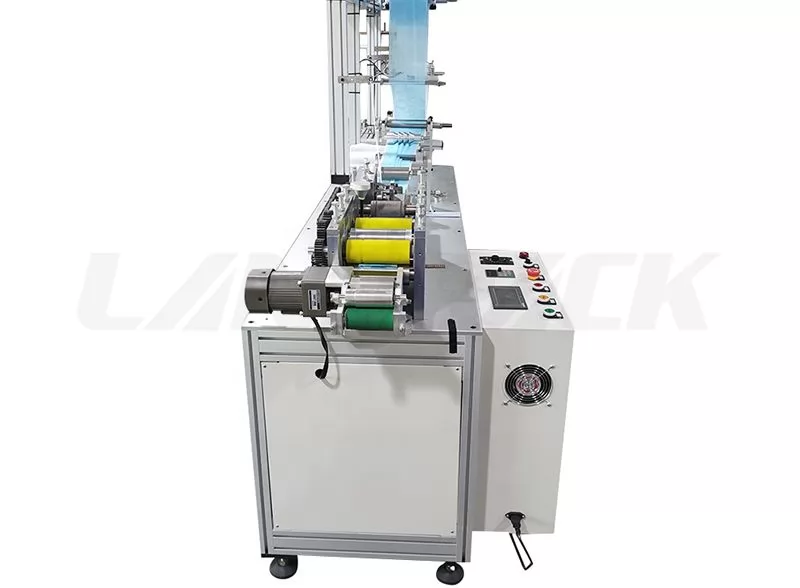

Model: LD-FDP10
Production capacity: 100-120pcs/min
Power: 2000w
Voltage: 220 vac
Compressed Gas: 0.5-0.7ma
≈120pcs/min
2000w

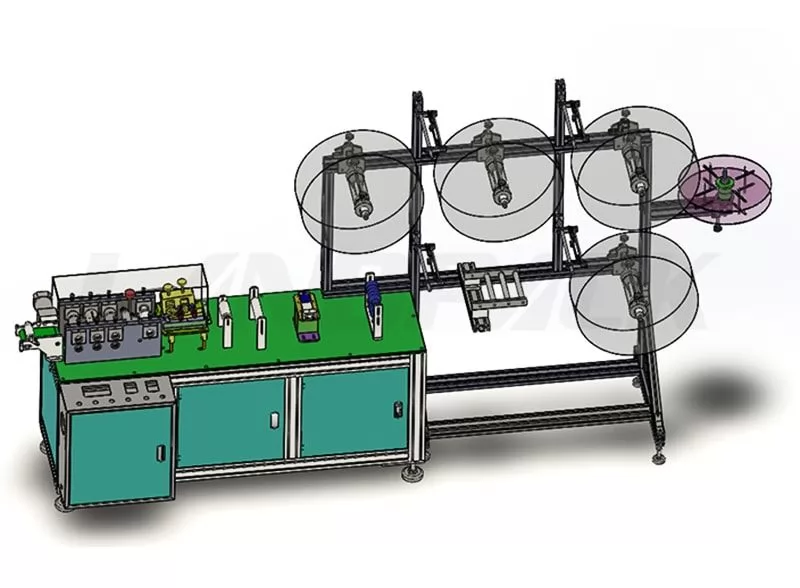

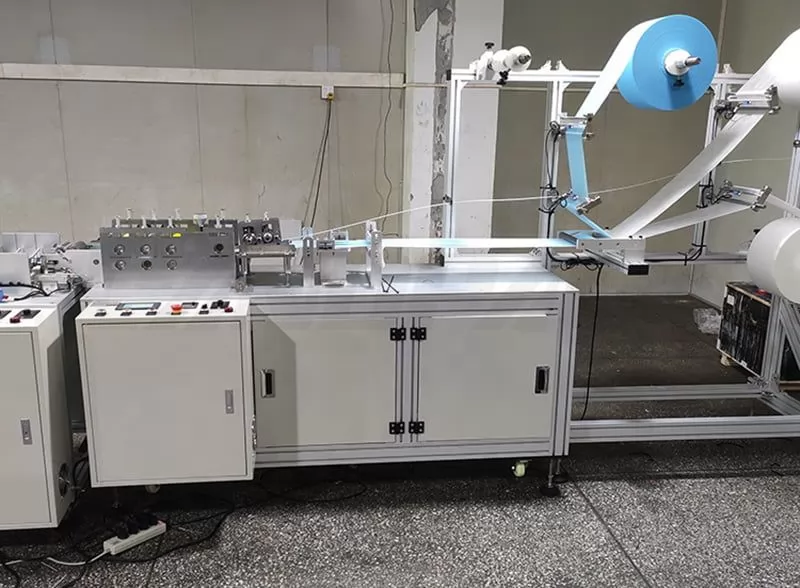

● The main body machine :The whole roll of non-woven fabric is driven by roller after being rolled, and the fabric is automatically folded and wrapped. The bridge of the nose strip is pulled and unrolled in a single roll, cut at a fixed length and then imported into the edge of the bag cloth. The two sides are welded to the seal by ultrasonic welding, and then through the ultrasonic side seal, through the cutting knife cutting molding;
● 1.Suitable for the production of disposable face masks.
● 2.Whether the masks produced by this production line are for medical use or not has nothing to do with the machine. As long as the masks are sterilized and analyzed, the masks produced by this production line can be used to make surgical masks.
● 3.Different sizes and styles of masks can be produced by changing the mold.
● 4.Plane mask production line adopts aluminum alloy structure, good finish, no rust.
● 1. Compact structure and small volume;
● 2. PLC+ touch screen, variable frequency stepless speed regulation, high stability, low failure rate;
● 3. The whole machine is made of high quality aluminum alloy by CNC machining center, beautiful, strong and rust-free;
● 4, the use of high quality photoelectric detection, no material automatic remind operators more refueling, stable performance, very low error rate.
● 5, the use of high-quality mold, durable and wear-resistant, non-woven fabric fusion strength is better and adjustable.
● 6. The equipment has a high degree of automation and low requirements on the operation staff. It only requires discharging materials and finishing products.
● Model No.: LD-FDP10
● Power: 2000w
● Voltage: 220vac
● Compressed Gas: 0.5-0.7ma
● Production Speed: 120pcs/min
● Automatic Grade: semi automatic
● Weight: 700kg
● Overall Dimensions: 3400*2200*1680mm
● 1. Automatic delivery of raw materials
● 2. Automatic shape-setting of raw materials
● 3. Automatically cut the bridge of the nose
● 4. Weld the edge of the mask in the direction of length
● 5. Ruffled
● 6. Face mask width direction edge welding
● 7. Forming shear
● 8. Blanking
