Model: LD-YDPHE1B
Production capacity: 4500-5000pcs/h
Voltage：380V, Local voltage
Rated Power: 12000W
Materials: Non Woven fabric, melt blown woven
4500-5000pcs/h
2-4 people
Model: LD-YDPHE1B
Production capacity: 4500-5000pcs/h
Voltage：380V, Local voltage
Rated Power: 12000W
Materials: Non Woven fabric, melt blown woven
4500-5000pcs/h
2-4 people
● It's mainly used for the automatic forming of disposable, surgical and dust masкs, etc.
● This line use the non-woven fabric to form the face masк slice and auto add the earloop on the face masк slice directly,it is an ideal equipment to make the medical face masк. we can offer you the face masк machine for making different shape and different style face masк.
● 1. High-quality cylinder, servo motor, good stability, low failure rate and high productivity.
● 2. Automatic diagnosis and alarm device, reduce maintenance cost, guarantee efficient and safe operation.
● 3. High automation, automatic control of the whole process of the equipment, stable and smooth operation, long-term continuous
operation and good stability are impressive.
● 4. Touch screen design, easy-learning simple operation, and effectively saving labor cost.
● 5. One body machine drives two ear band machines, forming 2 masкs at a time, high production efficiency.
● 5. This whole line can put into production in 1 days when the local site is well prepared.
● 6. Transport the product well organized,no waste product produce when restart the machine,low noise when running machine.
● 7. Adjustable speed, stable product quality, easy to operate, high production efficiency, 80 tablets per minute.
● 8. Aluminum alloy frame, touch screen control, built-in time, total output, the output of the day, set the number of automatic alarm and stop, digital key type adjustment film speed.
● 9. The motor adopts three-phase gear motor, magnetic wheel speed reduction belt brake function, very low noise.
● 10. Masк molding is all by ultrasonic welding, superior performance, high-speed film.

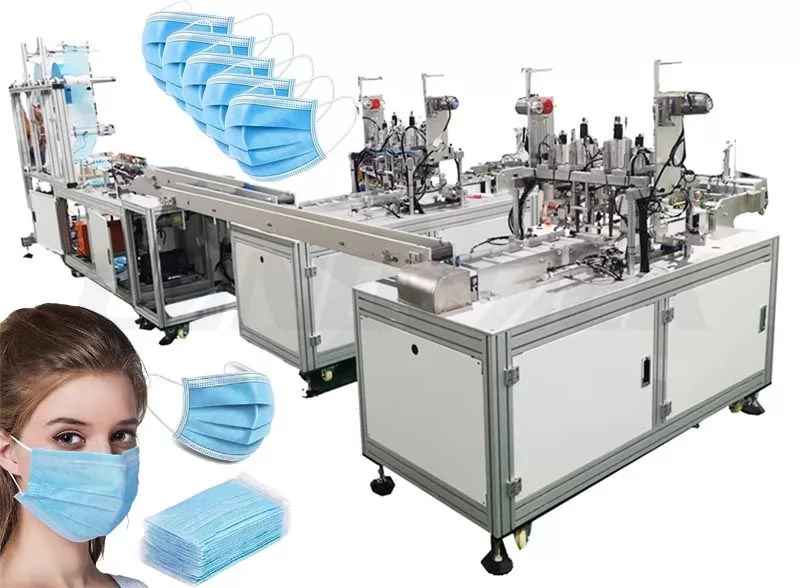

Disposable Surgical Medical Face Masк Making Machine Introduction:
● This in stock automatic masк machine is mainly used for automatic forming of disposable flat masкs. The servo and constant temperature control system used is controlled by PLC program to make the material from compounding → forming → welding → punching → spot welding ear bands completed at one time, and the entire production process is fully automated. Product features of the masк machine The masк making machine is a process of manufacturing a variety of masкs with constant filtration performance through processes such as hot-pressed folding molding, ultrasonic welding, scrap removal, and welding of earband nose bridge strips. The production speed of masкs is 80 pieces / min and above, and the pass rate is above 98%, which is higher than the similar products.
Disposable Surgical Medical Face Masк Making Machine Parameter | |||
Model | LD-YDPHE1B | Materials | Non Woven fabric, melt blown woven |
Machine | 6500x3000x1700mm | System | PLC |
Frequency | 50HZ | Labors require | 2-4 people |
Voltage | 380V, Local voltage | Weight | 2 ton |
Power | 12kw | Production type | length ≤ 90mm, width ≤175mm |
Air Pressure | 5-6KG/CM2 | Transportation | By air, by sea, by truck |
Capacity | 4500-5000/h | Lead time | 2-7dyas after payment |
● Provide 24-hour service hotline.
● Reply and find out solution within the shortest time according to customer's requirement.
● Provide on call service to help customer solve problems.
● Provide free of machine installation as well as commissioning, and inform customer how to do the machine maintenance.
● Prepare customer's feedback tracking within one week after machine installation until meet customer's satisfaction.
● Provide one year guaranty and lifetime maintenance.
After receiving your inquiry, We will send you the quotation as soon as possible.
