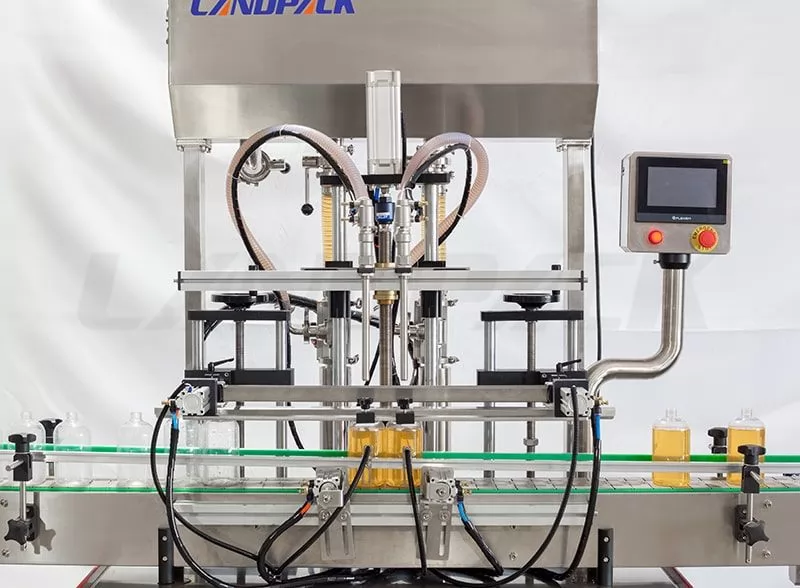

Model: LF-LZ-02
Filling Range: 50-1000ml (customizable)
Filling Speed: 10-20 Bottle/min (customizable)
Measurement accuracy: ±1%
10-20 bottle/min
customizable
Application:
● It is used for automatic filling of various liquids into bottles. Such as lubricant juice, oil, shampoo,detergent, sauce, shower gel, sauce, honey, cooking oil. Applicable for medicine, food, daily chemicals, pesticides and fine chemicals, and other varieties of product filling.
Kindly Reminder:
● We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
● High degree of automation, easy operation, stable operation, can effectively save corporate costs and improve production efficiency.
● Each single machine can complete its work independently. It has independent operating system and electrical
● components such as numerical control display to control and adjust various parameters and display settings. Can help companies achieve standardized production
● The individual machines are linked and separated quickly, and the adjustment is fast and simple, so that each process of production can be coordinated.
● Each single machine can adapt to the packaging of various specifications of bottles, with few adjustment parts.
● This packaging production line adopts international new process design and meets GMP standards.
● The production line runs smoothly, each function is easy to combine, and the maintenance is convenient. Various production combinations can be performed according to the user's respective product process requirements.
| Filling Nozzles | 2-10Nozzles |
| Production Capacity | 800-5000Bottles Per Hour |
| Filling Volume | 100-500ml,100ml tp 1000ml |
| Power | 2000W,200VAC |
| Accuracy | ±0.5% |
| Driven | Panasonic Servo Motor |
| Inerface | Schneider Touch Screen |
● Main Configuration:Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.
| Automatic Servo Filling Machine | ||||
| No. | Descriptions | BRAND | ITEM | Remark (made in China) |
| 1 | Servo Motor | Panasonic | 0.45KW | Japan |
| 2 | Reducer | Fenghua | ATF1205-15 | Taiwan |
| 3 | Conveyor Motor | ZhenYu | YZ2-8024 | China |
| 4 | servo drivers | Panasonic | LXM 23DU15M3X | Japan |
| 5 | PLC | Siemens | TM218LDALCODR4PHN | German |
| 6 | Touch Screen | Siemens | HMZGXU3500 | German |
| 7 | Frequency Converter | Danfoss | ATV12H075M2 | |
| 8 | Photo electricity of Inspect bottle | OPTEX or equal brand | BRF-N | Japan |
| 9 | Pneumatic Element | Airtac | Taiwan | |
| 10 | Rotary Valve | F07/F05 | No Need for Oil | |
| 11 | Pneumatic actuator | F07/F05 | No Need for Oil | |
| 12 | Low-Voltage Apparatus | Schneider | FRANCE | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 14 | Bearing | China | ||
| 15 | Lead Screw | TBI | Taiwan | |
| 16 | Butterfly valve | CHZNA | China | |
After receiving your inquiry, We will send you the quotation as soon as possible.
