Model: LD-960Y
Application:
Applicable for dosing liquid or semi-liquid and sealing in form of 3/ 4 side sealing sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting.
Applicable industry: Suitable for liquid products containing fine particles such as chili sauce, bean paste, instant noodle sauce, ketchup, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.
Max.40 cycle/min
Model: LD-960Y
Application:
Applicable for dosing liquid or semi-liquid and sealing in form of 3/ 4 side sealing sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting.
Applicable industry: Suitable for liquid products containing fine particles such as chili sauce, bean paste, instant noodle sauce, ketchup, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.
Max.40 cycle/min
● Applicable for dosing liquid or semi-liquid and sealing in form of 3/ 4 side sealing sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting.
● Applicable Packaging Material: Laminate Heat sealable packing materials such as OPP/PE, BOPP/VMPET/PE, PET/AL/PE etc.
● Applicable industry: Suitable for liquid products containing fine particles such as chili sauce, bean paste, instant noodle sauce, ketchup, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.
● 1. Multi lanes machine can produce multi lanes bags at same time.

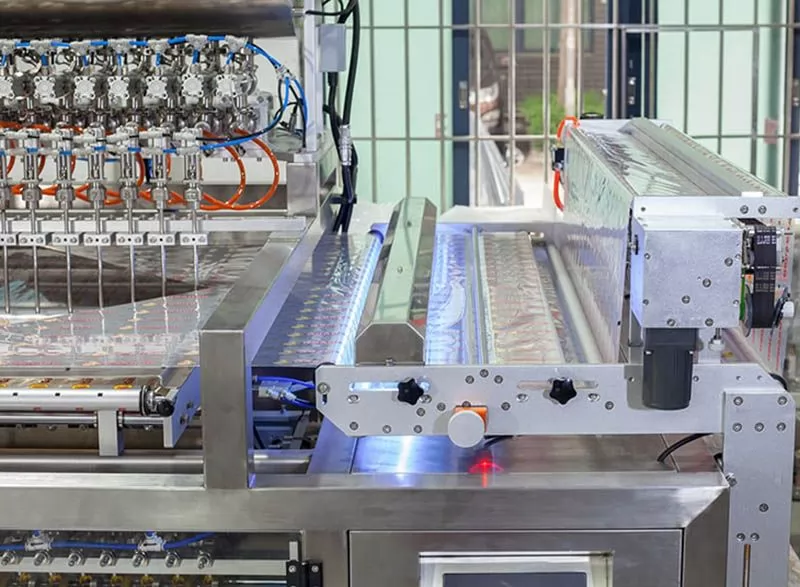

● 2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
● 3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
● 4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
● 5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
● 6. PLC controller, high function and control the whole machine’s work steps.
| Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
● Sealing Type: 4 sides sealing; 3 sides sealing.
● Cutting Type:
Straight Cutting;
Zig Zag Cutting;
Continuous Cutting.
