Model: LFPD-50-02
Filling Weight: 10-5000g(customizable)
Bottle diameter: Φ30-Φ140mm(customizable)
Bottle height: 50mm-200mm(customizable)
Yield: 10-25 Bottle/min
10-20 bottle/min
Customizable
Application:

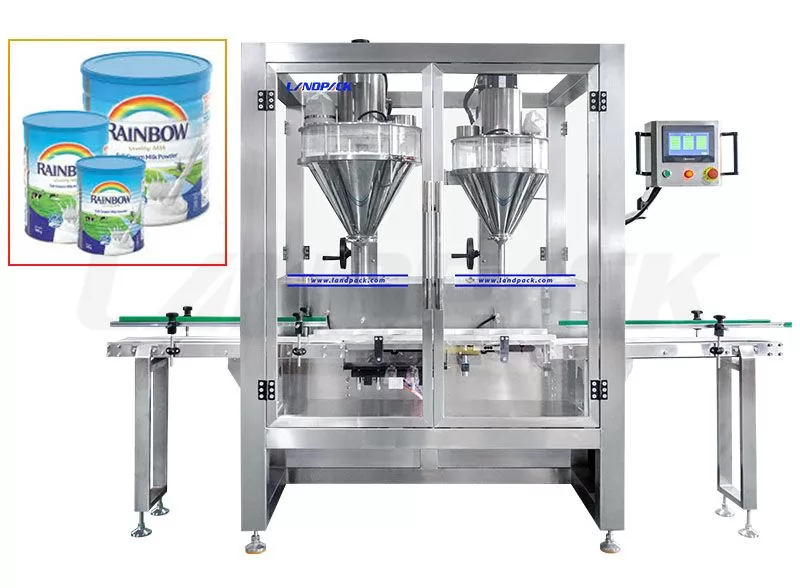

● Landpack automatic powder filler line equipped with high-speed capping machine and round bottle labeling machine. It is suitable for filling fluidic or low-fluidity powder materials like flour, wheat flour, milk powder, coffee powder, granular additive, etc. It's widely used in the various industry including pharmaceutical, foodstuff, cosmetic and chemical.
Kindly Reminder:
● We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
● The use of card disk positioning mechanism, Chinese and English LCD touch screen, PLC control system, work at a glance.
● The use of cans or bottles of containers, no bottles and bottles are not filling, can be configured automatically into the bottle into the tank system.
● The structure of the whole machine, reasonable layout, change packaging varieties, cleaning and convenience.
● Imported servo motor, high speed, large torque, which greatly improves the accuracy of packaging.
| Multifunction Automatic Powder Filling Machine 99.9% Filling Precision | ||
| Model | LFPD-50-01 | LFPD-50-02 |
| Filling Weight | 10-5000g(customizable) | 10-5000g(customizable) |
| Bottle diameter | Φ30-Φ140mm(customizable) | Φ30-Φ140mm(customizable) |
| Bottle height | 50mm-200mm(customizable) | 50mm-200mm(customizable) |
| Yield | 10-20 Bottle/min | 20-40 Bottle/min |
| Measurement accuracy | ≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material) | ≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material) |
| Power | 2.5KW | 5KW |
| Silo capacity | 50L | 50L |
| Power Supply | 220V、50Hz | 220V、50Hz |
| Working Pressure | 0.6-0.8MPa | 0.6-0.8MPa |
| Weight | 350kg | 550kg |
● This powder filling system is driven by a servo motor to ensure high filling accuracy. It is controlled by PLC, man-machine interface and easy to operate. The filling volume can be changed by replacing the screw gauge, and the measuring range is wide.
