Model: LD720D
Measuring range: 100-4000mlml(customizable)
Film roll diameter: MAX.320mm
Powder Supply: 220V 50/60Hz 2.2KW(customizable)
Yield: 5-55 Bag/min
5-55bag/min
Model: LD720D
Measuring range: 100-4000mlml(customizable)
Film roll diameter: MAX.320mm
Powder Supply: 220V 50/60Hz 2.2KW(customizable)
Yield: 5-55 Bag/min
5-55bag/min
Application:

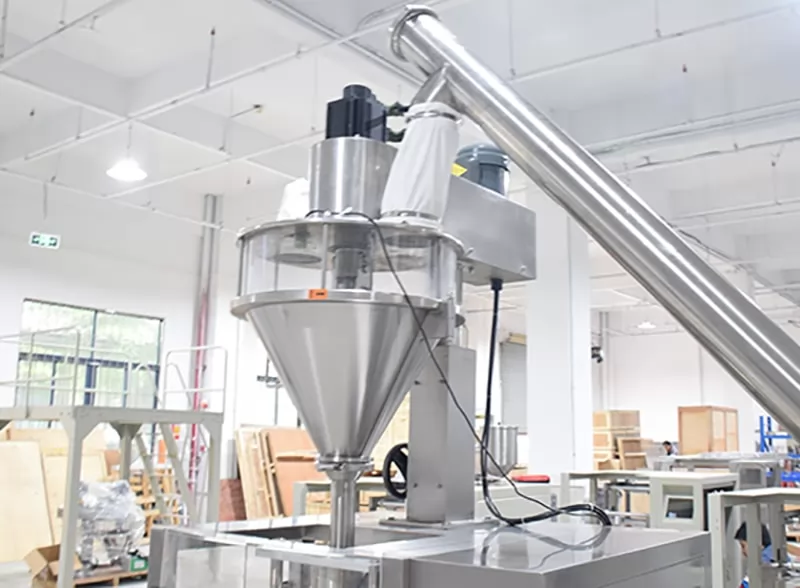

● Automatic powder filling machine(720D) with screw auger conveyor/ Auger metering machine. Suitable for which materials requiring high accuracy of measurement or careful handling,such as flour, wheat flour, milk powder, sugar powder, coffee powder, wheat flour, detergent powder, coconut powder, etc.
Kindly Reminder:
● We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examber:
● Simple construct, reliable circulator, easy maintenance.
● The machine adopt the screw pole putting material, adopting servo-code and the.microcomputer technology control is the main technology feature.
● Simultaneous code control, sensitive action, low noise, outstanding, reliable measure,speed quickly, high precise soon. Another it can display the measure counter.
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
● This powder filling system is driven by a servo motor to ensure high filling accuracy. It is controlled by PLC, man-machine interface and easy to operate. The filling volume can be changed by replacing the screw gauge, and the measuring range is wide.
