Automatic Oil Vertical Pouch Form Fill And Seal Machine

Model: LD420L

Film width: Max.420

Bag length: 80-300mm

Bag width: 60-200mm

Packing speed: 10-60 bags/min

Speed:

10-60 bags/min

Bag Size:

L: 80-350mm

W: 60-250mm

Automatic Oil Vertical Pouch Form Fill And Seal Machine

Model: LD420L

Film width: Max.420

Bag length: 80-300mm

Bag width: 60-200mm

Packing speed: 10-60 bags/min

Speed:

10-60 bags/min

Bag Size:

L: 80-350mm

W: 60-250mm

 Application:
Suitable for liquids with good fluidity. Such as edible oil, liquid detergent, sauces, shampoo, ketchup, tomato sauce, milk, bath lotion, hand sanitizer, soap liquid, vegetable oil, and other liquids.

 Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material

 Packaging Sample:oil sachet packing machine

 Using a color touch-screen and digitalized management, has an automatic stop and alarm advanced function when there is a shortage of material or pouches. Thus it is easy to operate and convenient to maintain.

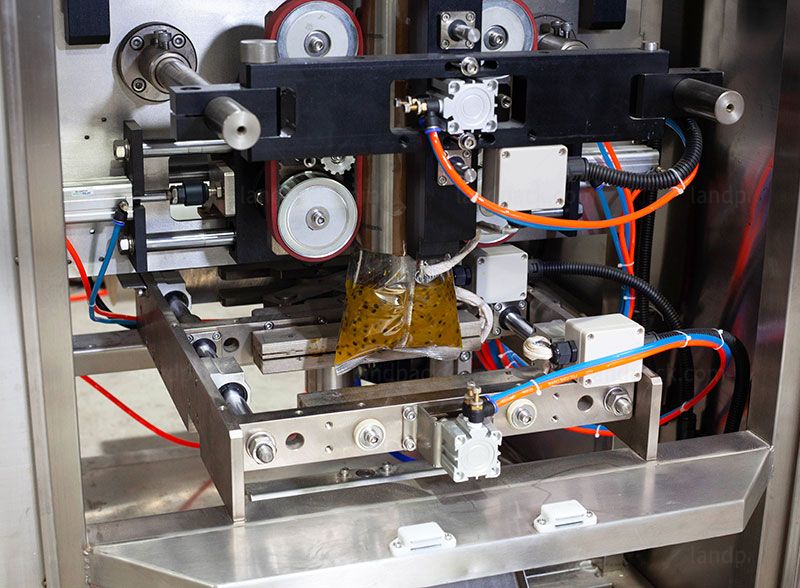

 Adpoting Japanese Panasonic PLC to draw the film, pneumatics to seal pouches, and insures accurate positioning, and beautiful seal, so that it helps to improve the operation stability.

 Double-roller to exhaust air by extrusion, which can eliminate the air completely to achieve an airless package.

 One-time completion of bag-making, weighing and adjusting, bagging, sealing, cutting, and packing.

 Solid and elegant work doors are waterproof and protective. The machine will stop automatically to avoid accidents during production when workers open the doors to touch the operation part.

 Can be equipped with various conveyors. Moreover, it still works stably under high temperatures, so it not only improves production efficiency but also avoids bacteria contamination.

 The external frame and structure are made of stainless steel, which is clean and hygienic, up to the indicator of food hygiene quality.

 It improves production efficiency availably, and reduces the cost of labor, thus reducing the production cost.

 Compared with manual packing, automatic packing looks more elegant and firmer.

 Accessories are produced by a large-scale manufacturer with a renowned brand, which has more stable performance.

ModelLD-420LLD-520L
Film WidthMax.420mmMax.520mm
Bag Length80-300mm80-350mm
Bag Width60-200mm100-250mm
Range of Measurement    150-1500ml2000ml
Film Roll DiameterMax.320mmMax.320mm
Packaging Rate10-60bag/min10-60bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW
Machine Size(L*W*H)1217*1015*1343mm1488*1080*1490mm
Machine QualityAbout 650kgAbout 680kg
Optional device1.Date Printing,2.Hole Punching Device,3.Air-filling Device,4.Tear Notch Device
  1. Date Printing;

  2. Hole Punching Device;

  3. Air-filling Device;

  4. Tear Notch Device.

After receiving your inquiry, We will send you the quotation as soon as possible.
