Model: LF-LZ-08
Filling Range: 50-5000ml (customizable)
Filling Speed: 800-4200 Bottle/hour (customizable)
Measurement accuracy: ＜0.5%
800-4200 Bottle/hour
100-5000ml
Model: LF-LZ-08
Filling Range: 50-5000ml (customizable)
Filling Speed: 800-4200 Bottle/hour (customizable)
Measurement accuracy: ＜0.5%
800-4200 Bottle/hour
100-5000ml
Application:
●It is suitable for injection, semi-fluid, ointment, shampoo and other products with various viscosities, and is widely used for filling products in food, cosmetics, medicine, grease, daily chemicals, detergents, pesticides, and pesticides. Such as edible oil, detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste.
Packaging Material:
●Glass, Metal, Paper, Plastic, Wood, Other
Kindly Reminder:
● We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
● Bottle Filling machine is adjustable for many different types of bottles
● Easy to maintain, no special tools are required.
● No bottle, no filling, automatic PLC control.

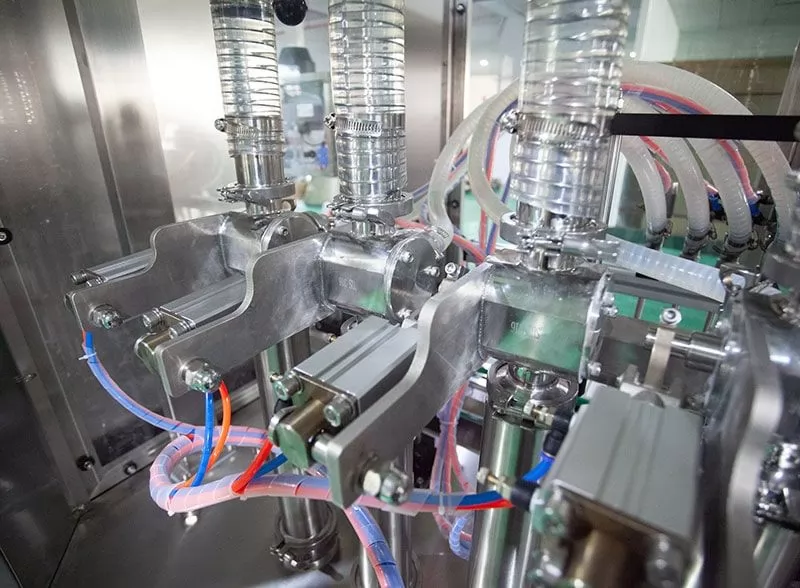

● Filling nozzles are anti drops, silk, and auto cut viscous liquid.
● Perfect filling precision: Less than 0.5%.
● Special seals or hoses are adapted if the liquid are corrosive.
● Diving nozzles for bottom up filling of foaming products if need.
● How It Works: The product bulk supply is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the filler’s master computer so that precise amounts of liquid will flow by gravity into the container. Gravity fillers built with bottom up fill capability can handle a wide range of flowable liquids including foamy products.Machine Parameters:
| Filling Volume | 100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml | |||||
| Filling Material | Shampoo,Lotion,Cooking oil,Lube oil, Degergent liquid,Hair oil, Honey, Sauce,and so on | |||||
| Filling nozzle | 2 | 4 | 6 | 8 | 10 | 12 |
| Capacity（B/H) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
| Filling Precision | Less Than 0.5% | |||||
| Power supply | 220V Single phase 50HZ 380V Three phase 50HZ | |||||
● Main Configuration: Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.
| Automatic Servo Filling Machine | ||||
| No. | Descriptions | BRAND | ITEM | Remark (made in China) |
| 1 | Servo Motor | Panasonic | 0.45KW | Japan |
| 2 | Reducer | Fenghua | ATF1205-15 | Taiwan |
| 3 | Conveyor Motor | ZhenYu | YZ2-8024 | China |
| 4 | servo drivers | Panasonic | LXM 23DU15M3X | Japan |
| 5 | PLC | Siemens | TM218LDALCODR4PHN | German |
| 6 | Touch Screen | Siemens | HMZGXU3500 | German |
| 7 | Frequency Converter | Danfoss | ATV12H075M2 | |
| 8 | Photo electricity of Inspect bottle | OPTEX or equal brand | BRF-N | Japan |
| 9 | Pneumatic Element | Airtac | Taiwan | |
| 10 | Rotary Valve | F07/F05 | No Need for Oil | |
| 11 | Pneumatic actuator | F07/F05 | No Need for Oil | |
| 12 | Low-Voltage Apparatus | Schneider | FRANCE | |
| 13 | proximity switch | ROKO | SC1204-N | Taiwan |
| 14 | Bearing | China | ||
| 15 | Lead Screw | TBI | Taiwan | |
| 16 | Butterfly valve | CHZNA | China | |
After receiving your inquiry, We will send you the quotation as soon as possible.
