Model: LD-320L/LD-380L
Suitable for liquids with good fluidity. Such as edible oil, liquid detergent, sauces, shampoo, ketchup, tomato sauce, milk, bath lotion, hand sanitizer, soap liquid, vegetable oil, and other liquids.
Packing speed: 35-70 bags/min
35-70 bags/min
Model: LD-320L/LD-380L
Suitable for liquids with good fluidity. Such as edible oil, liquid detergent, sauces, shampoo, ketchup, tomato sauce, milk, bath lotion, hand sanitizer, soap liquid, vegetable oil, and other liquids.
Packing speed: 35-70 bags/min
35-70 bags/min
Application:
Suitable for liquids with good fluidity. Such as edible oil, liquid detergent, sauces, shampoo, ketchup, tomato sauce, milk, bath lotion, hand sanitizer, soap liquid, vegetable oil, and other liquids.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Packaging Sample:
● Stainless steel surrounds the part where contact with the material. The machine is in accord with the European CE standard.
● The computer controller is the first patented product in China, an advanced frequency converter, and supports multi-language control.

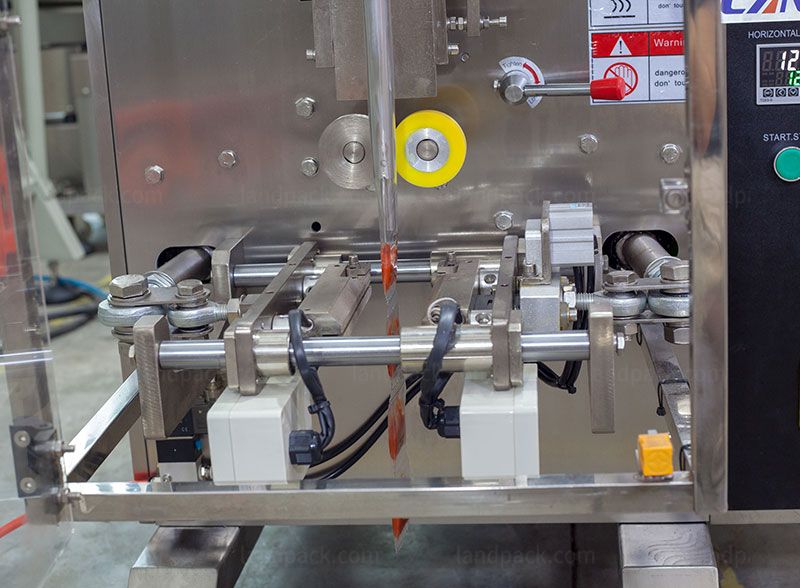

● Unique embedded sealing, enhanced heat sealing organization, intelligent temperature controller with heat balance suitable for various packaging materials, good performance, clear sealing texture, and firm sealing.

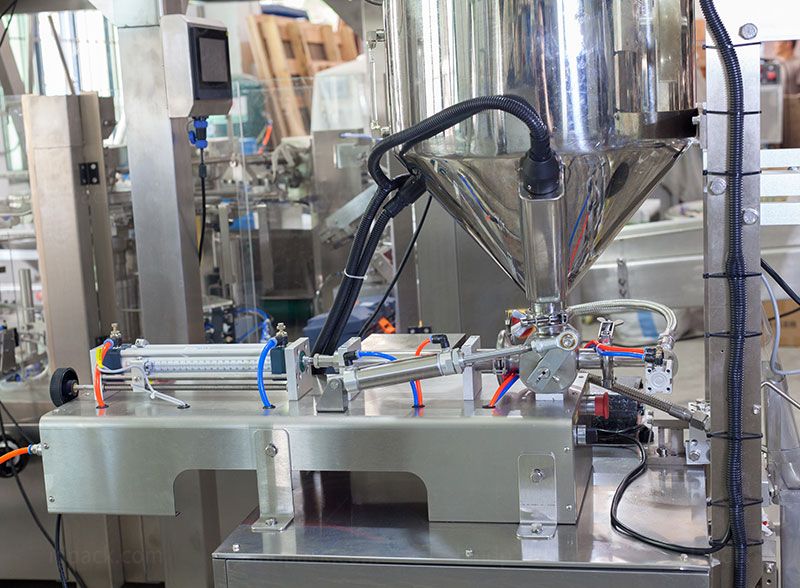

● Pump measurement adjusting device can adjust packaging capacity while running the machine, reduce material loss and improve productivity.

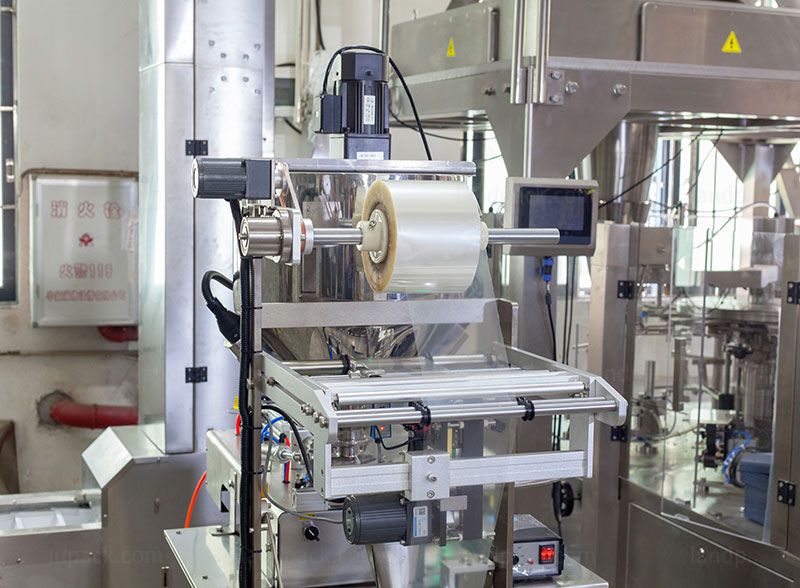

● Bag system with stepping motor subdivision technology, high precision, and the error is less than 0.5mm.
Type | LD-320L | LD-380L |
Film width | 120-320mm | 180-380mm |
Bag length | 50-200mm | 60-280mm |
Bag width | 50-150mm | 60-180mm |
Diameter of film roll | Max.300mm | Max.320mm |
Packing speed | 35-70bags/min | |
Measuring range | 50-500ml | 50-750ml |
Film thickness | 0.04-0.07mm | |
Power | 220V, 50/60Hz, 2.2KW | 220V, 50/60Hz, 2.5KW |
Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
● Date Coder
● Hole Punching Device(Pinhole, Round hole, the butterfly hole)
● Linking bag control device
● Air-filling Device
● Air Exhaust Device
● Tear Notch Device
After receiving your inquiry, We will send you the quotation as soon as possible.
