Model: LFYT-01
Application:
It is suitable for the filling of various liquids, various swab sampling tube extraction tube nucleic acid test sample tube nutrient solution.
0-60 bottles/min
customized
Model: LFYT-01
Application:
It is suitable for the filling of various liquids, various swab sampling tube extraction tube nucleic acid test sample tube nutrient solution.
0-60 bottles/min
customized

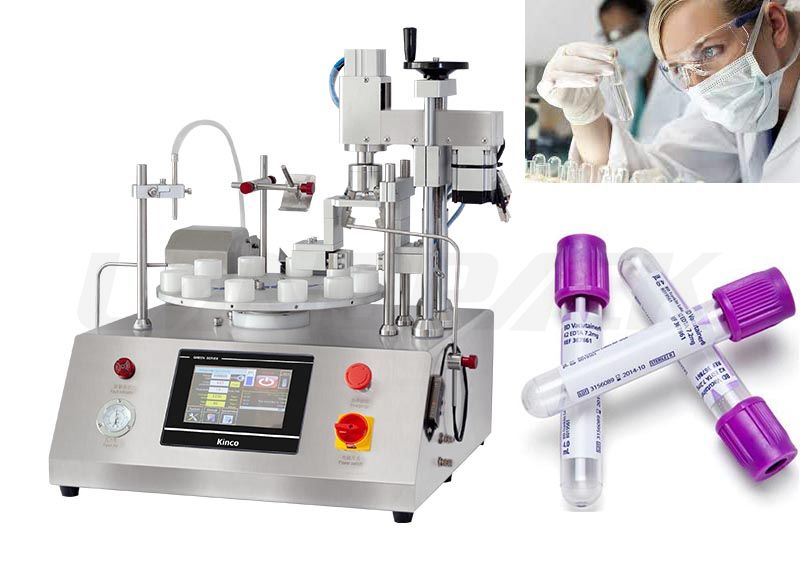

●Application: High-precision reagent tube swab sampling tube liquid filling capping machine, it is It is suitable for the filling of various liquids, various swab sampling tube extraction tube nucleic acid test sample tube nutrient solution.
●Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
●The ceramic pump filling machine is a high-accuracy filling machine. Widely used in advanced cosmetics, skin care products, pharmaceuticals. High installation accuracy, convenient and flexible use;
●Equipped with no bottle and no filling function, the liquid level automatically controls feeding, effectively reducing equipment failure;
●Program control adopts PLC + touch screen manual operation interface to realize intelligent control
●The filling nozzle is made of stainless steel 304, which is corrosion-resistant and meets GMP production requirements;
●The material of the feeding hose is PVC, the temperature range: -10 ℃ ~ + 90 ℃;
●PLC touch screen control panel, visualization of working parameters, simple operation interface, and the fastest basis for machine conditions. 15 different national operating languages for wider applicability.
●Using a ceramic column pump with higher metering accuracy can ensure that the filling error is below 0.25%
●The size of the tray and the number of filling heads can be customized according to the needs of filling
●The drawer type design makes the circuit layout of the machine clearer and easier to maintain. Reasonable circuit distribution greatly improves the stability of the machine
| Model | LFYT-01 |
Sealing speed | 0-60 bottles/min(customized) |
Accuracy | 0.25% |
Filling type | Ceramic plunger pump |
Power | 50-60Hz |
Control | Simen PLC+Touch screen, Multilanguage support |
Quantity of filing heads | 4/6/8/10/12(customized) |
Filling range | 0.2-25ML |
Weight | 41 KG |
Size | About 500*550*580mm |

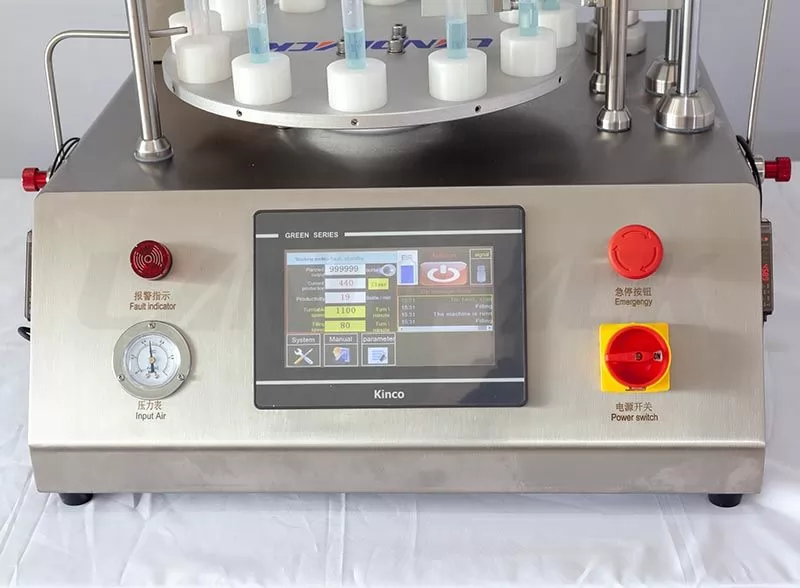

●Through the touch screen panel,it's easy to set working parameters like filling speed.The language of panel can be customized according to customers'need.

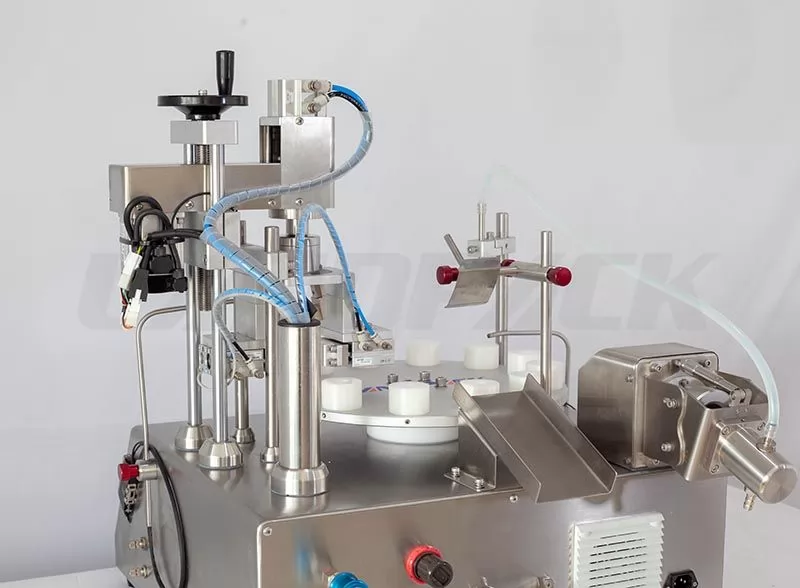

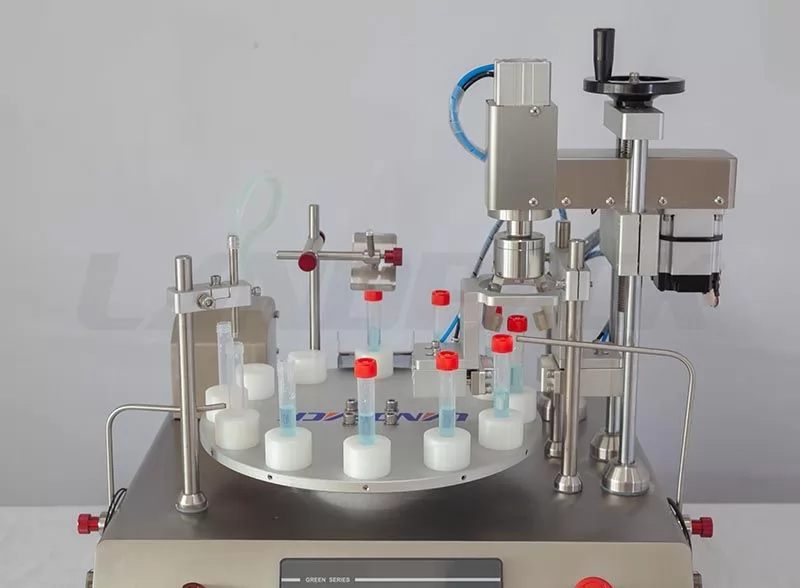

●The filling heads of this machine can move in X/Y/Z axis directions,which can prevent liquid from splashing out.The moving distance can be adjusted on the panel easily.
●With high-precision ceramic pumps,it can fill low-viscosity liquid accurately, which can be used for filling chemical reagent or advanced cosmetics.
●you can arrange bottles in order,saving labor cost. It need to be
●customized according to bottles'sizes.Please tell us about your bottles'size before placing an order.
●Made in push-pull design,it is convenient to check and maintain machine. Help to improve working efficiency.
After receiving your inquiry, We will send you the quotation as soon as possible.
