Model: LD-8200DS/ 8240DS/ 8300DS
Pouch Type: All type of heat sealable preformed side seal bags, gusseted bags, block bottom bags,zip-lock recloseable bags, stand-up pouch with or without spout etc.
Filling Volume: Filling Volume: 10-2500g
Packaging Accuracy:Error≤±1
25-60 bags/min
Model: LD-8200DS/ 8240DS/ 8300DS
Pouch Type: All type of heat sealable preformed side seal bags, gusseted bags, block bottom bags,zip-lock recloseable bags, stand-up pouch with or without spout etc.
Filling Volume: Filling Volume: 10-2500g
Packaging Accuracy:Error≤±1
25-60 bags/min
Suitable for automatic packing for Powder: milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.

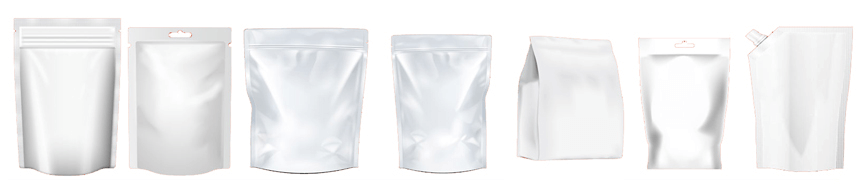

Suitable Pouches: All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout ect.
Packaging Material:
Bag Style:
● Full automatic intermittent rotary preformed bags dispensing, opening and closing machine combined with automatic auger powder filler, bulk screw feeder and product bulk hopper.
● Safety guard protected for high speed and consistent production heavy duty components and parts are selected for machine durability.
● Hygienic construction and easy cleaning operators friendly design touchscreen control system.
● Adopt advanced PLC, mate with touch screen and electric control system, the man-machine interface is friendly.
● Dust control and extractor system on special request.
● Automatic checking system can check bag situation, filling and sealing situation.
● The system shows:
1.no bag feeding, no filling and no sealing.
2.no bag opening/opening error, no filling and no sealing
3.no filling, no sealing.
We can customize the suitable one for you according to your requiredment.
Just Tell us: Weight or Bag Size required.
● Model: LD-8200DS/ 8240DS/ 8300DS
● Bag Size: W: 100-300mm L: 100-450mm
● Filling Volume:10-2500g (Depending on type of products)
● Capacity: 25-60 bags/min (The speed depends on type of products and packaging material used)
● Package Accuracy: Error≤±1%
● Compress Air Requirement: ≥0.8m³/min supply by user
Optional configuration:
1. Material weighing & filling machines
2. Platform
3. Check weigher
4. Material elevator
5. Finished product conveyor
6. Metal detector
1. Bag giving
2. Date coding
3. Bag opening
4. Filling and vibrating 1
5. Filling and vibrating 2
6. Product settling after filling by vibrating
7. Heat sealing
8. Forming and product output
After receiving your inquiry, We will send you the quotation as soon as possible.
