Model: LD-ALF01
Production Capacity: 20-35 Bottles/min
Filling Volume: 50-1000ml (Customizable)
20-35 bottles/minute
50-1000 ml (Customizable)
Model: LD-ALF01
Production Capacity: 20-35 Bottles/min
Filling Volume: 50-1000ml (Customizable)
20-35 bottles/minute
50-1000 ml (Customizable)
● Application:
It is suitable for liquid products such as ketchup, tomato sauce, mayonnaise, chili sauce, chutney, bean paste, instant noodle sauce, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, etc.
● Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Bottle/jar material
4. Bottle/jar shape
5. Bottle/jar dimension

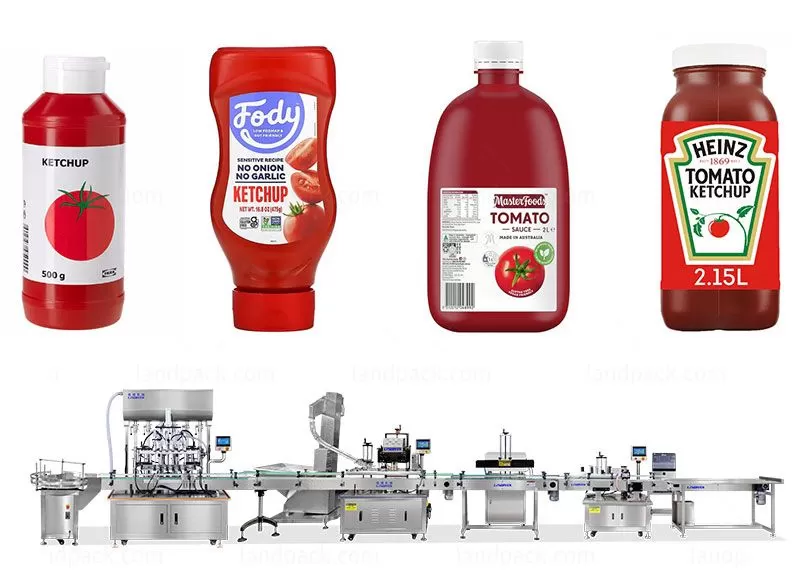

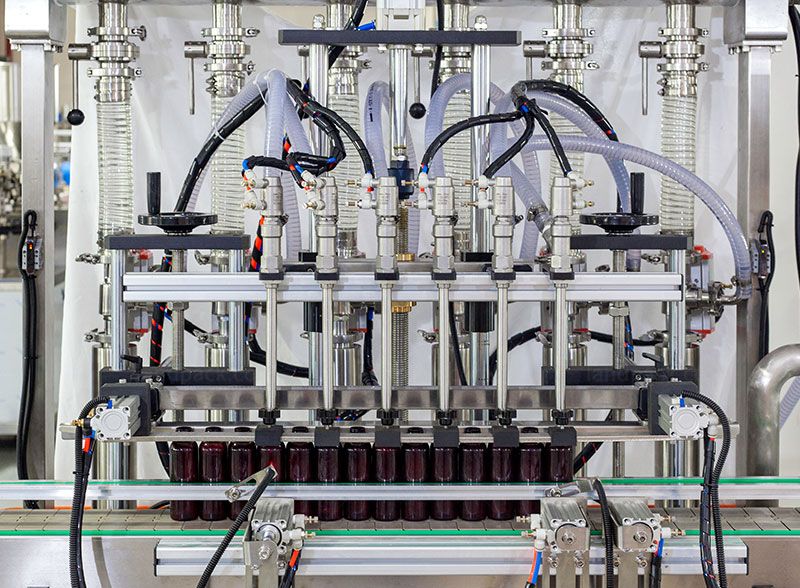

● Ketchup automatic filling machine automatically goes through the bottle and can pack automatically, with high precision. According to different specifications and models of bottles, the volume of the bottle and the size of the bottle mouth can be adjusted at will. It can be equipped with an automatic assembly line.
● It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance, and so on.
● After cleaning the machine, the dirty water won't flow to the ground, keeping the machine safe in production.
● The contact with the material is 304 stainless steel, in full compliance with GMP standards.
● Complete set, the whole line is fully automatic, saving labor.
● The machine is easy to maintain, and without any tools can be easily removed for cleaning installation, and is an easy adjustment. When adjusting the filling volume, first you can wild range adjust and then fine-tuning. No bottle no filling.
Type | LD-ALF01 |
Production Capacity | 20-35 Bottles/min |
Filling Volume | 50-1000ml (Customizable) |
Power | 220V, 50Hz, 1KW |
| Working Pressure | 0.6mpa-0.8mpa |
Accuracy | ±1% |
Weight | 400kg |
| Size | L4004*W1175.97*H2045(mm) |
● LD series main frame
● Metering machine
● Pump infeed conveyor
● Product conveyor
