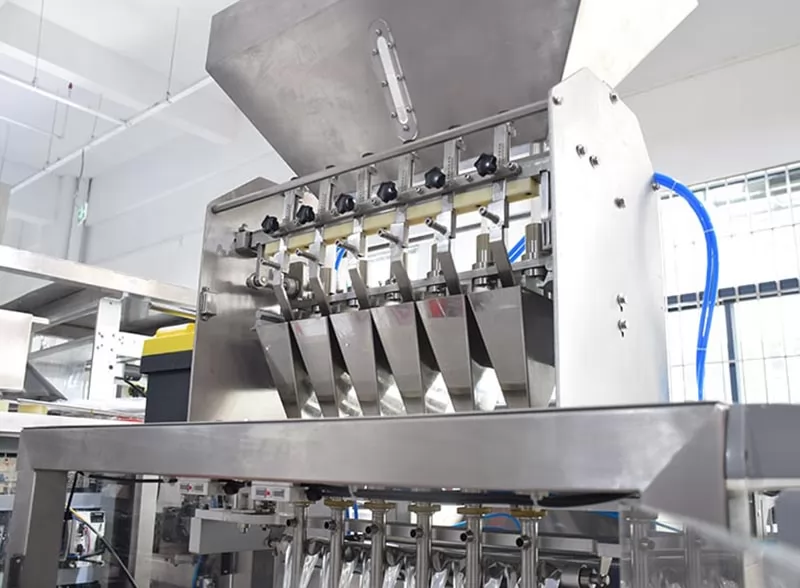

Automatic Multilane Sauce/ Jam/ ketchup Sachet Packing Machine

Model: LD-480Y/ 720Y/ 960Y

Lane Number: 4-12 Line

Filling Method: 1.Piston pump; 2. Peristaltic pump

Sealing Type: 3/4 sides sealing

Speed:

Max.40 cycle/min

Bag Size:

L:45--120mm

W:35-120mm

Automatic Multilane Sauce/ Jam/ ketchup Sachet Packing Machine

Model: LD-480Y/ 720Y/ 960Y

Lane Number: 4-12 Line

Filling Method: 1.Piston pump; 2. Peristaltic pump

Sealing Type: 3/4 sides sealing

Speed:

Max.40 cycle/min

Bag Size:

L:45--120mm

W:35-120mm

 Suitable for automatic multilane sachet packing, such as many kinds of liquid products, ex sauce, ketchup, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, jelly, etc.

Packaging Material:

sauce

sauce

ketchup

ketchup

butter

butter

ketchup

ketchup

paste

paste

Jam

Jam

Bag Style:

4 sides sealing

4 sides sealing

4 sides sealing

4 sides sealing

4 sides sealing

4 sides sealing

4 sides sealing

4 sides sealing

3 sides sealing

3 sides sealing

3 sides sealing

3 sides sealing

 Multi lanes machine can produce multi lanes bags at same time.

 Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

 Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

 Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

 High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

 PLC controller, high function and control the whole machine’s work steps.

 Model: LD-480L/720L/960L

 Lanes Number: 4~12 lane

 Filling Method: 1.Piston pump; 2.Peristaltic Pump

 Capacity: Max.40 cycle/min

 Sachet Size: L:45--120mm; W:35-120mm

 Film Width & Thickness: Max.96 0mm;0.07-0.1mm

 Air & Power: 0.8 mpa  0.8m³/min, 2.8kw;  0.8 mpa  0.8m³/min, 4.1kw; 0.8 mpa  0.8m³/min,5.5kw

 DIM & W: 1415*1686*2130mm; 500kg

 Sealing Type: 4 sides sealing; 3 sides sealing.

 Cutting Type:

  1. Straight Cutting;

  2. Zig Zag Cutting;

  3. Continuous Cutting.
