Model: LD-8200AS
Application:
Suitable for automatic packing for grain and solid food, such as All kinds of Seeds, beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, chemicals, sugar, etc.

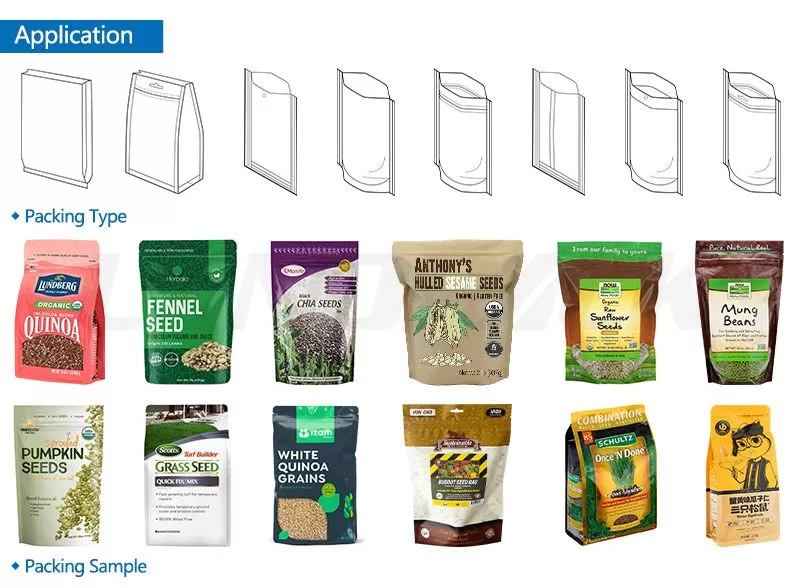

Different kinds of product with stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc,
25~60bag/min
W: 70-200mm
Model: LD-8200AS
Application:
Suitable for automatic packing for grain and solid food, such as All kinds of Seeds, beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, chemicals, sugar, etc.
Different kinds of product with stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc,
25~60bag/min
W: 70-200mm
● Application:
Suitable for automatic packing for grain and solid food, such as All kinds of Seeds, beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, chemicals, sugar, etc.
Different kinds of product with stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc,
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● Rapid change of the specifications of the bag, bag width can be automatically adjusted by one button.
● Single shaft and the CAM design: packaging speed faster; more stable operation ; maintenance easier and reduce defective rate.
● Modular heating, temperature control more accurate, heating fault have alarm prompt.
● Advanced design idea, reduce the material loss, ensure the stability of equipment operation, extend the operating life of the equipment.
● Simple and convenient operation, adopts the advanced PLC + POD (touch screen) electric control system and man-machine interface.
● Machine have wide packaging range , it can packaging : liquid, paste, granule, powder, solid various bagging materials only. According to the different material with different metering device.
● Machine use preformed bags & packaging design is perfect & good sealing quality to improve the quality and grade of the product.
| Type | LD-8200 |
| Packing Material | 3-side,four edge sealing bag,doypack,handbag,spout bags, zipper bag,compound bag,etc |
| Size: | W: 70-200mm |
| Filling Range | 10/1000g |
| Packing Speed | 40~60bag/min（speed is determined by the product filling quantity 25~40 bags/min (for zipper pouch) |
| Average Precision | <±1% |
| Total Power | 2.5KW |
| Work Flow | giving bag—coding —opening —filling 1 —filling 2— auxiliary —exhaust—heat sealing—forming and output product |
| Dimensions | 1900mm X 1570mm X 1700mm (L*W*H) |
● giving bag → coding → opening → filling 1 → filling 2 → auxiliary → exhaust → heat sealing → forming and output product
