Model: LD-420Y
Bag Volume: 1000ml
Power Supply: 220V, 50/60Hz, 3KW
Application: Suitable for packing and weighing many kinds of products such as: puffy food, shrimp roll,peanut, shrimp chips, popcorn, cornmeal, seed and sugar,etc.
10-80 bag/min
Model: LD-420Y
Bag Volume: 1000ml
Power Supply: 220V, 50/60Hz, 3KW
Application: Suitable for packing and weighing many kinds of products such as: puffy food, shrimp roll,peanut, shrimp chips, popcorn, cornmeal, seed and sugar,etc.
10-80 bag/min

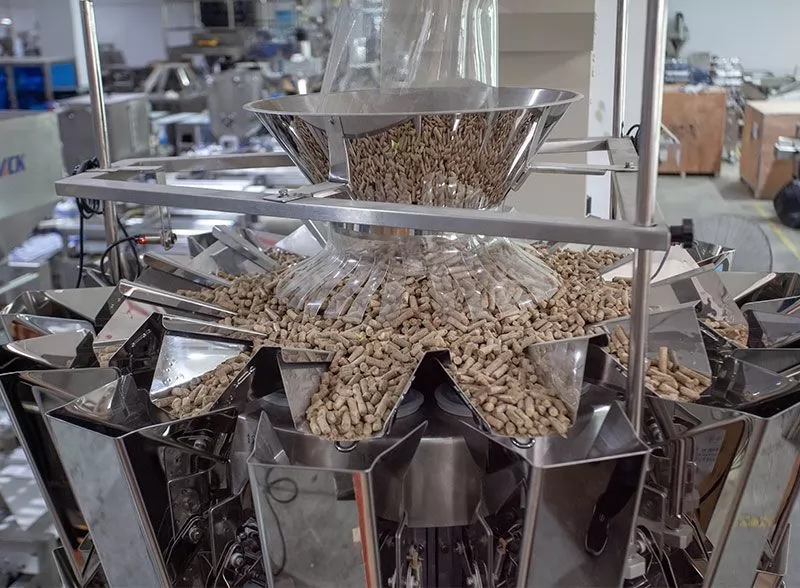

● Application: Low cost all-in-one granule vffs weighing packing machine stable operation extremely low noise(LD-420Y), It is suitable for packing and weighing many kinds of products such as: puffy food, shrimp roll,peanut, shrimp chips, popcorn, cornmeal, seed and sugar,etc. which shape is roll, slice and granule.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● PLC computer control system.PLC from Janpan or Germany;
● Big touch From Tai wan . Easy to operate and control the machine;
● High precise positioning with servo film transporting systerm;
● Servo motor from Germany Seimens to ensure stable;
● Warn protection function;
● The machine will automatically complete all packaging processes from measuring, feeding, filling, Printing, finished bag;
● The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.
Main main parameter | |
| Model | LD-420Y |
Packing speed | 10-80 bag/min |
Bag size | (Width)80-200mm (Length)50-300mm |
Bag making mode | Pillow-type bag, standing bag, punch hold and connect |
ange of measuring | 2000ml |
The maximum width of packing film | 420mm |
Thickness of film | 0.04-0.10 mm |
Air consumption | 400L/min 0.6×105Pa |
Main power/voltage | 4.0 KW/220V 50-60Hz |
Dimension | 1720×1030×2254mm |
The weight of switchboard | 450Kg |
● The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.
