Model: LD-8200A/ 8240A/ 8300A
Pouch Type: Suitable for automatic packing for grain and solid food, such as pet food, dog food, cat food, fish food, bird food, and other granular pet food, beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.
Filling Volume: Filling Volume: 10-2500g
Packaging Accuracy: Error≤±1%
80-120bag/min
Model: LD-8200A/ 8240A/ 8300A
Pouch Type: Suitable for automatic packing for grain and solid food, such as pet food, dog food, cat food, fish food, bird food, and other granular pet food, beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.
Filling Volume: Filling Volume: 10-2500g
Packaging Accuracy: Error≤±1%
80-120bag/min
● Application: Suitable for automatic packing for grain and solid food, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.
● Bag Style: Different kinds of product with stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

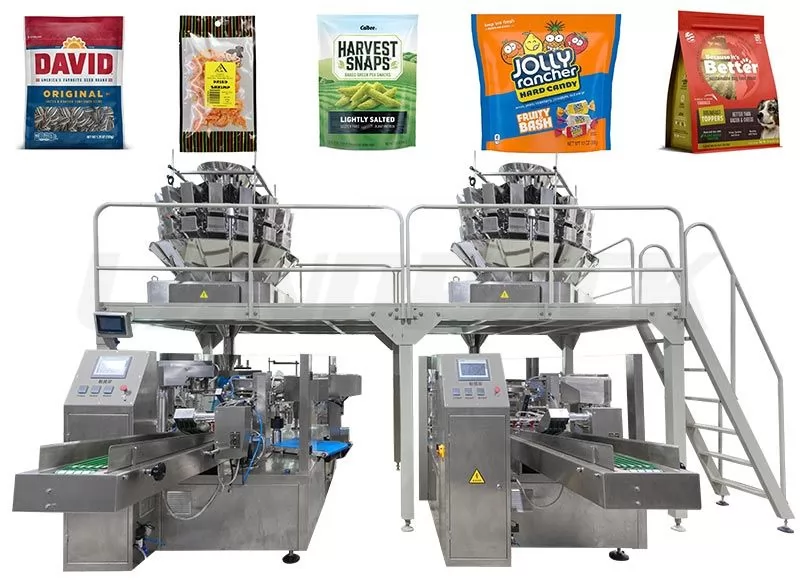

● Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
● The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.
● Automatic checking system can check bag situation, filling and sealing situation.
● The system shows
1.no bag feeding, no filling and no sealing.
2.no bag opening/opening error, no filling and no sealing
3.no filling, no sealing..
● The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.
● Model: LD-8200A/ 8240A/ 8300A
● Bag Size: W: 100-300mm L: 100-450mm
● Filling Volume: 10-2500g (Depending on type of products)
● Capacity: 25-60 bags/min (The speed depends on type of products and packaging material used)
● Package Accuracy: Error≤±1%
● Compress Air Requirement: ≥0.8m³/min supply by user
Optional configuration:
1. Material weighing & filling machines
2. Platform
3. Check weigher
4. Material elevator
5. Finished product conveyor
6. Metal detector
1. Bag giving
2. Date coding
3. Bag opening
4. Filling and vibrating 1
5. Filling and vibrating 2
6. Product settling after filling by vibrating
7. Heat sealing
8. Forming and product output
After receiving your inquiry, We will send you the quotation as soon as possible.
