Model: LP-450X/ 600X/ 700X

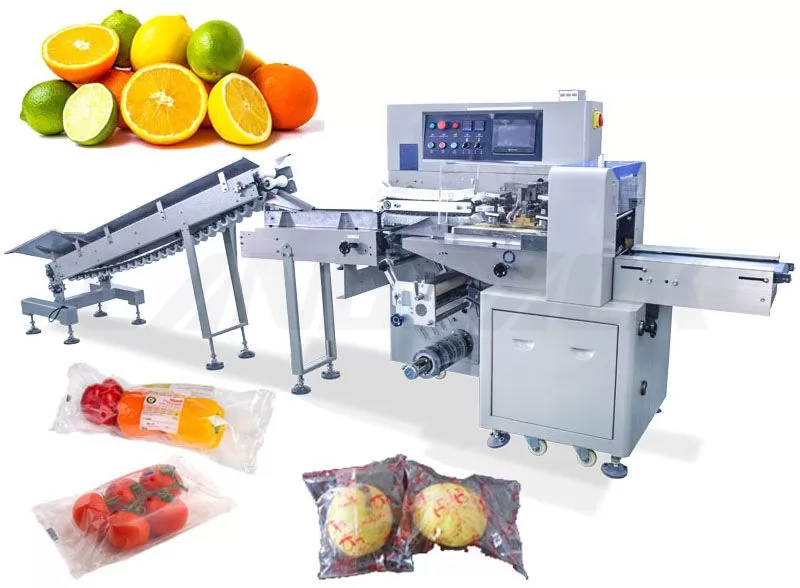

Application: Suitable for Spherical Fruit And Vegetable Packaging, eg: oranges, lemons, mangosteen, apples, tomatoes. and other spherical, columnar product eg: remote control, etc.
Film width: Max.700mm
20-150bags/min
Model: LP-450X/ 600X/ 700X
Application: Suitable for Spherical Fruit And Vegetable Packaging, eg: oranges, lemons, mangosteen, apples, tomatoes. and other spherical, columnar product eg: remote control, etc.
Film width: Max.700mm
20-150bags/min
● Suitable for Spherical Fruit And Vegetable Packaging, eg: oranges, lemons, mangosteen, apples, tomatoes. and other spherical, columnar product eg: remote control, etc.
● Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.
● Interface features are easy and quick setting and operating.
● Self diagnosis failure function, clear failure display.
● High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.
● Temperature independent PID control, suitable for packing different materials.
● Positioned stop function,without sticking knife or wasting film.
● Simple driving system,reliable working,convenient maintenance.
● All control is realized through software,easy for function adjusting and technical upgrade.
Model | LP-450X | LP-600X | LP-700X | ||
Film width | Max.450mm | Max.600mm | Max.700mm | ||
Bag length | 120-450mm | 120-500mm | 120-600mm | ||
Bag width | 50-180mm | 100-280mm | 100-330mm | ||
Product height | Max.80mm | Max.110mm | |||
Max width of film roll | Max.320mm | ||||
Packing speed | 40-150bags/min | 20-150bags/min | 20-130bags/min | ||
Power | 220V,50/60Hz,2.8KW | ||||
Machine size (L*W*H)mm | 4020*820*1450 | 4020*920*1460 | 4020*980*1480 | ||
Machine weight | 650kg | 680kg | 720kg |
● Date Coder
● Automatic Punching Device
● Auto labeling device
● Nitrogen generator
